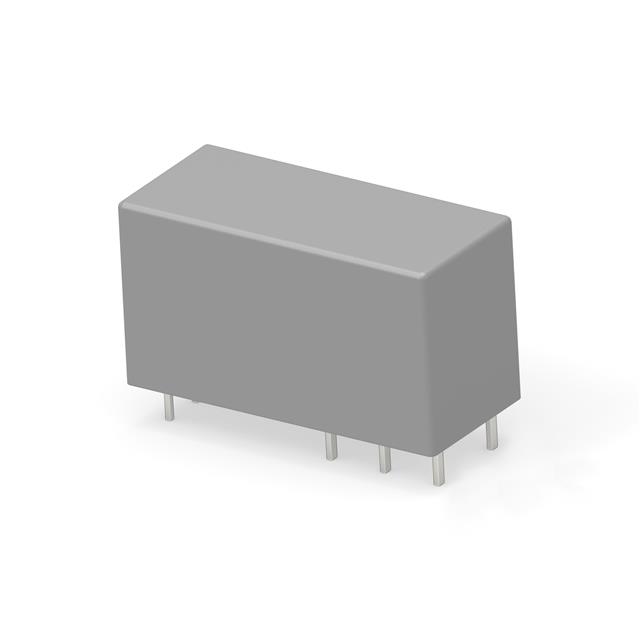

8-1415541-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-1415541-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1415541-7 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 27.1 mA |
| Coil Insulation | Class F |
| Coil Resistance | 886 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 3000 | $ 4.24 | |
Description
General part information
RTE24F Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole
