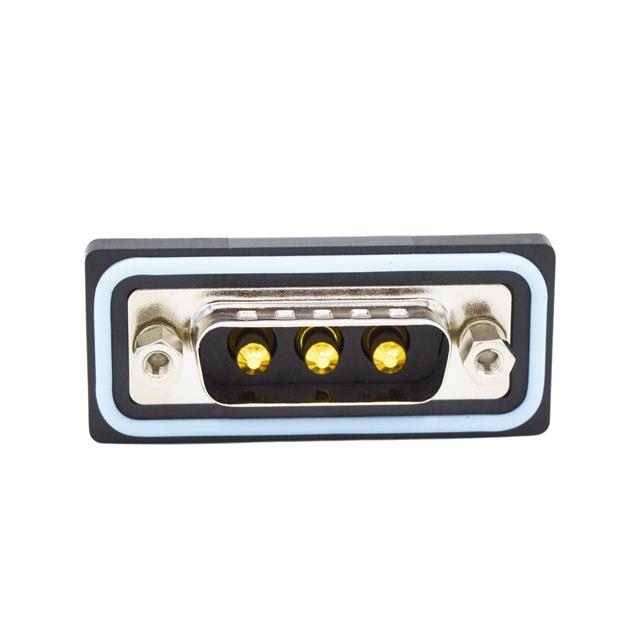

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +3

CDFV3W3113L452

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 POWER, SOLDER

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFV3W3113L452

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder

CDFV3W3 Series

Part	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Dielectric Material	Termination	Number of Positions	Contact Type	Flange Feature	Connector Style	Number of Rows	Contact Material	Ingress Protection	Mounting Type	Current Rating (Amps)	Contact Finish Thickness	Shell Material, Finish	Color	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness
MH Connectors CDFV3W3213L411	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	40 A	Flash	Nickel Plated Steel	Black	Receptacle Female Sockets
MH Connectors CDFV3W3113L412	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	5 A 20 A		Nickel Plated Steel	Black	Male Pins Plug	Grounding Indents	0.76 Ám	30 Áin
MH Connectors CDFV3W3213L412	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	5 A 20 A		Nickel Plated Steel	Black	Receptacle Female Sockets		0.76 Ám	30 Áin
MH Connectors CDFV3W3113L212	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	20 A		Nickel Plated Steel	Black	Male Pins Plug	Grounding Indents	0.76 Ám	30 Áin
MH Connectors CDFV3W3213L452	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	5 A 20 A		Nickel Plated Steel	Black	Receptacle Female Sockets		0.76 Ám	30 Áin
MH Connectors CDFV3W3113L452	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	5 A 20 A		Nickel Plated Steel	Black	Male Pins Plug	Board Lock Grounding Indents	0.76 Ám	30 Áin
MH Connectors CDFV3W3113L451	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	40 A	Flash	Nickel Plated Steel	Black	Male Pins Plug	Board Lock Grounding Indents
MH Connectors CDFV3W3113L411	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	40 A	Flash	Nickel Plated Steel	Black	Male Pins Plug	Grounding Indents
MH Connectors CDFV3W3213L211	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	20 A	Flash	Nickel Plated Steel	Black	Receptacle Female Sockets
MH Connectors CDFV3W3113L251	Gold	-25 °C	85 °C	2 (DA A)	3W3	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	3	Power	Female Screwlock (4-40) Mating Side	Combo D-Sub	1	Brass	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	20 A	Flash	Nickel Plated Steel	Black	Male Pins Plug	Board Lock Grounding Indents
