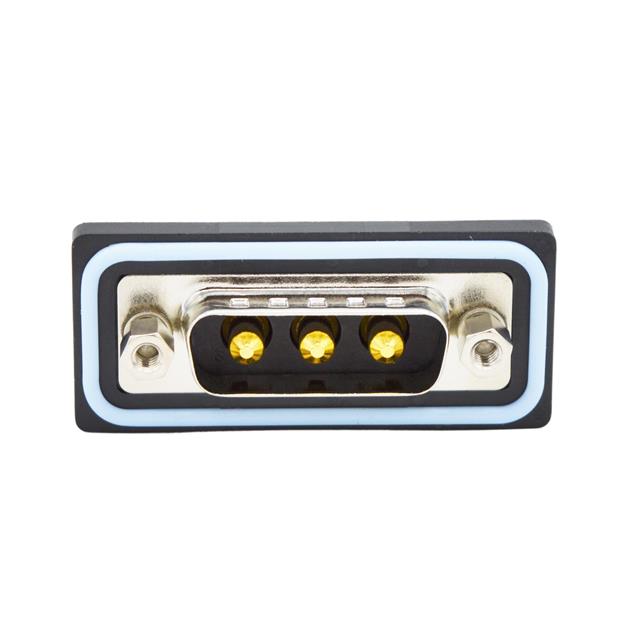

Specification	CDFV3W3113L412

Color	Black
Connector Layout	A, DA
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Form	Machined
Contact Material	Brass
Contact Type	Power
Current Rating Options	5A, 20A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Part Code	3W3
Position Types	Power
Shell Material	Steel
Shell Size	2
Termination	Solder

CDFV3W3 Series

Part	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Contact Finish	Connector Style	Connector Type	Contact Type	Mounting Type	Number of Positions	Position Types	Shell Size	Connector Layout	Part Code	Material Flammability Rating	Shell Material	Finish	Flange Feature	Current Rating	Termination	Ingress Protection Description	Ingress Protection IP Rating	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Dielectric Material	Contact Form	Color	Current Rating Options	Features
NorComp Inc. CDFV3W3213L411	0	Flash	Flash	Gold	Combo D-Sub	Female Sockets Receptacle	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	40 A	Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black
NorComp Inc. CDFV3W3113L412	30 µin			Gold	Combo D-Sub	Male Pins Plug	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side		Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black	20A 5A	Grounding Indents
NorComp Inc. CDFV3W3213L412	30 µin			Gold	Combo D-Sub	Female Sockets Receptacle	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side		Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black	20A 5A
NorComp Inc. CDFV3W3213L212	30 µin			Gold	Combo D-Sub	Female Sockets Receptacle	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	20 A	Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black
NorComp Inc. CDFV3W3113L212	30 µin			Gold	Combo D-Sub	Male Pins Plug	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	20 A	Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black		Grounding Indents
NorComp Inc. CDFV3W3213L452	30 µin			Gold	Combo D-Sub	Female Sockets Receptacle	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side		Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black	20A 5A	Board Lock
NorComp Inc. CDFV3W3113L452	30 µin			Gold	Combo D-Sub	Male Pins Plug	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side		Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black	20A 5A	Board Lock Grounding Indents
NorComp Inc. CDFV3W3113L451	0	Flash	Flash	Gold	Combo D-Sub	Male Pins Plug	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	40 A	Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black		Board Lock Grounding Indents
NorComp Inc. CDFV3W3113L411	0	Flash	Flash	Gold	Combo D-Sub	Male Pins Plug	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	40 A	Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black		Grounding Indents
NorComp Inc. CDFV3W3213L211	0	Flash	Flash	Gold	Combo D-Sub	Female Sockets Receptacle	Power	Panel Mount Through Hole	3	Power	2	A DA	3W3	UL94 V-0	Steel	Nickel Plated	Female Screwlock (4-40) Mating Side	20 A	Solder	Dust Tight Waterproof	IP67	1	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined	Black
