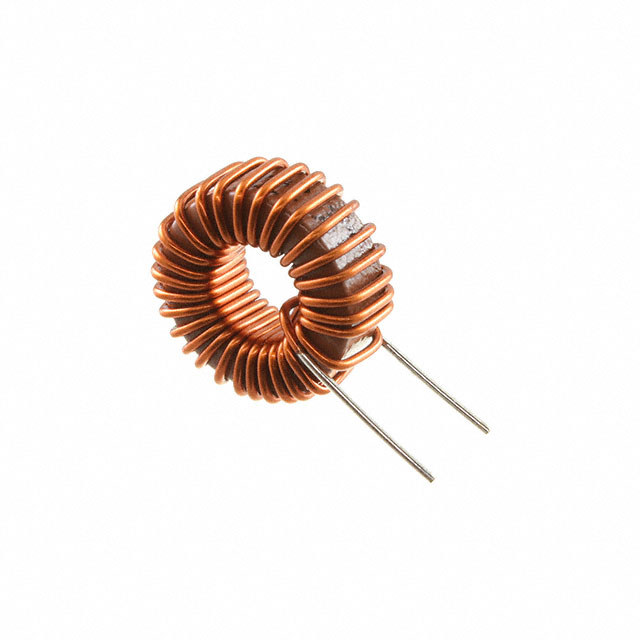

HHBC8S-0R6A0024V

Active

KEMET

INDUCTOR LINE FILTER TOROID 24UH 20% 100KHZ 2A 0.0411OHM DCR RDL TRAY

Search across all available documentation for this part.

Active

KEMET

INDUCTOR LINE FILTER TOROID 24UH 20% 100KHZ 2A 0.0411OHM DCR RDL TRAY

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance @ Frequency	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Number of Lines	Current Rating (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [Max] [z]
KEMET HHBC8S-0R6A0043V	No Base Vertical	2 Lead	0.669 in	17 mm	125 °C	-40 °C	43 µH	Through Hole	17 mm	0.669 in	54.1 mOhm	2	2 A
KEMET HHBC8S-0R6A0024V	No Base Vertical	2 Lead	0.63 in	16 mm	125 °C	-40 °C	24 µH	Through Hole			41.1 mOhm	2	2 A	16 mm	0.63 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	26	$ 2.48
Digikey	Bulk	700	$ 1.60

General part information

24 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 41.1mOhm
