Description
General part information

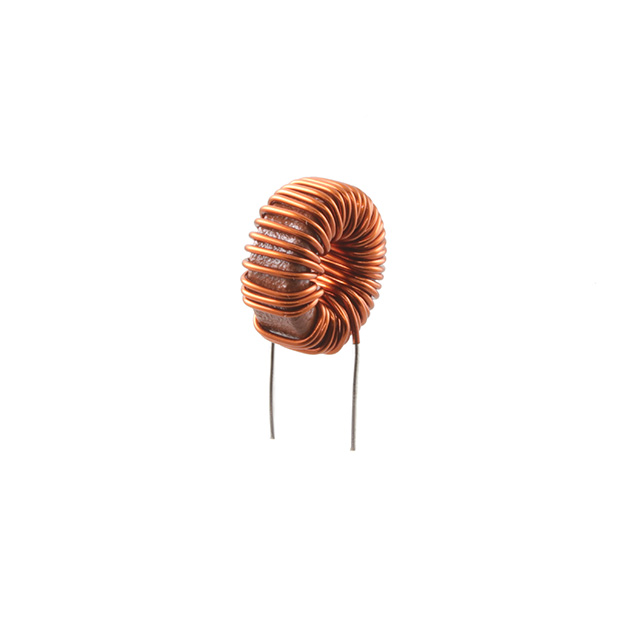

HHBC8S Series
43 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2A DCR 54.1mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | HHBC8S-0R6A0043V |
|---|---|
| Current Rating (Max) | 2 A |
| DC Resistance (DCR) (Max) | 54.1 mOhm |
| Height (Max) | 0.669 in |
| Inductance | 43 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2 PC Pin, No Base, Vertical |
| Package Name | Vertical, No Base |
| Pad Count | 2 PC Pin |
| Size / Dimension Diameter | 0.669 in |
