2CH-H Series

Part	Note	Fastening Type	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Connector Type	Contact Type	Pitch	Color	Mounting Type	Insulation Material	Contact Termination

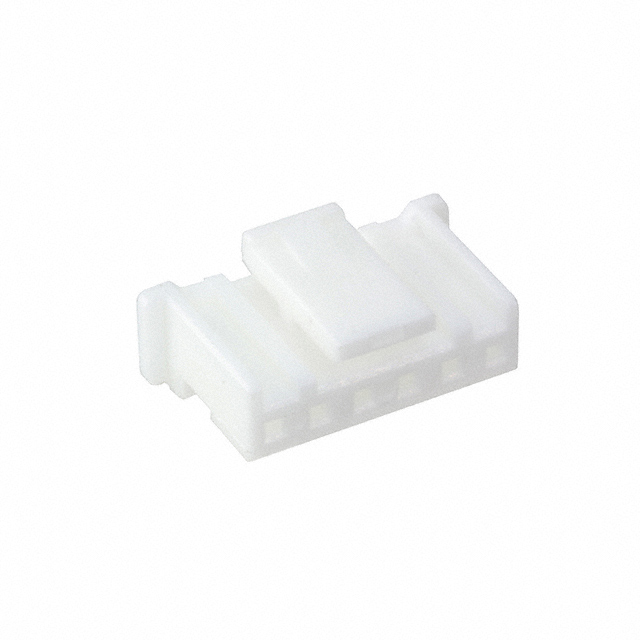

Adam Tech 2CH-H-06	Contacts Not Included	Friction Lock	6	85 °C	-25 °C	1	Receptacle	Female Socket	0.079 in	White	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	Crimp
Adam Tech 2CH-H-03	Contacts Not Included	Friction Lock	3	85 °C	-25 °C	1	Receptacle	Female Socket	0.079 in	White	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	Crimp
Adam Tech 2CH-H-02	Contacts Not Included	Friction Lock	2	85 °C	-25 °C	1	Receptacle	Female Socket	0.079 in	White	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	Crimp
Adam Tech 2CH-H-05	Contacts Not Included	Friction Lock	5	85 °C	-25 °C	1	Receptacle	Female Socket	0.079 in	White	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	Crimp
Adam Tech 2CH-H-08	Contacts Not Included	Friction Lock	8	85 °C	-25 °C	1	Receptacle	Female Socket	0.079 in	White	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	Crimp
Adam Tech 2CH-H-07	Contacts Not Included	Friction Lock	7	85 °C	-25 °C	1	Receptacle	Female Socket	0.079 in	White	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	Crimp
