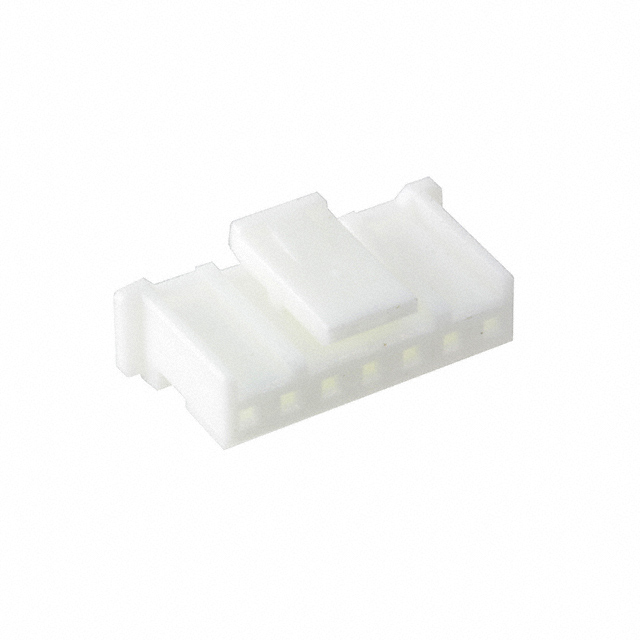

2CH-H-07
ActiveAdam Tech
CONN RCPT HSG 7POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
2CH-H-07
ActiveAdam Tech
CONN RCPT HSG 7POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2CH-H-07 |
|---|---|
| Color | White |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
2CH-H Series
| Part | Pitch [x] | Pitch [x] | Number of Positions | Fastening Type | Insulation Material | Color | Mounting Type | Connector Type | Contact Type | Number of Rows | Note | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 0.079 in | 2 mm | 6 | Friction Lock | Polyamide (PA66) Nylon 6/6 | White | Free Hanging (In-Line) | Receptacle | Female Socket | 1 | Contacts Not Included | Crimp | -25 °C | 85 °C |
Adam Tech | 0.079 in | 2 mm | Friction Lock | Polyamide (PA66) Nylon 6/6 | White | Free Hanging (In-Line) | Receptacle | Female Socket | 1 | Contacts Not Included | Crimp | -25 °C | 85 °C | |
Adam Tech | 0.079 in | 2 mm | 8 | Friction Lock | Polyamide (PA66) Nylon 6/6 | White | Free Hanging (In-Line) | Receptacle | Female Socket | 1 | Contacts Not Included | Crimp | -25 °C | 85 °C |
Adam Tech | 0.079 in | 2 mm | 7 | Friction Lock | Polyamide (PA66) Nylon 6/6 | White | Free Hanging (In-Line) | Receptacle | Female Socket | 1 | Contacts Not Included | Crimp | -25 °C | 85 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.43 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
Description
General part information
2CH-H Series
7 Rectangular Connectors - Housings Receptacle White 0.079" (2.00mm)
