WIZFI360-EVB-MINI

Active

WIZnet

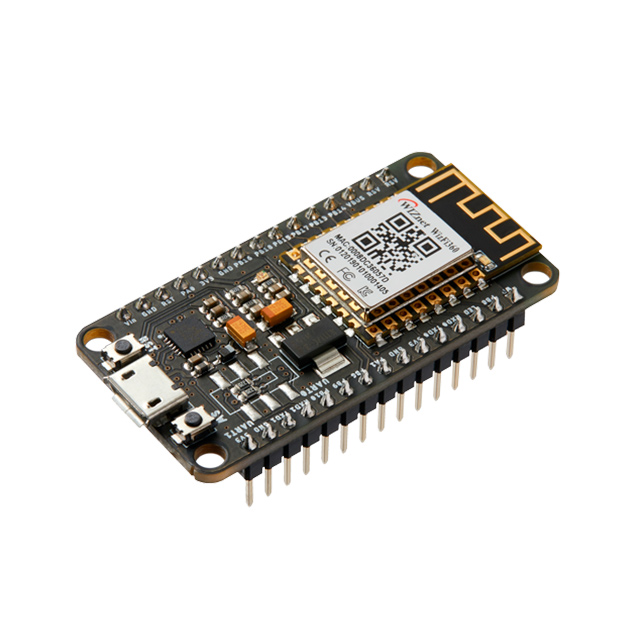

EVALUATION BOARD FOR WIZFI360

Search across all available documentation for this part.

Active

WIZnet

EVALUATION BOARD FOR WIZFI360

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WIZFI360-EVB-MINI	WIZFI360 Series

Antenna Type	-	Integrated, Trace, Antenna Not Included, I-PEX
Contents	-	Board(s)
Current - Receiving	-	110 mA
Current - Transmitting	-	230 mA
Data Rate	-	2 - 72.2 Mbps
For Use With/Related Products	WizFi360	WizFi360
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.4835 GHz
Function	-	WiFi
Modulation	-	DSSS, OFDM, CCK
Mounting Type	-	Surface Mount, Through Hole, Chassis Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module, 20-DIP Module
Platform	-	Arduino
Power - Output	-	19 dBm
Protocol	-	802.11b/g/n
RF Family/Standard	-	WiFi
Sensitivity	-	-95 dBm
Serial Interfaces	-	UART
Supplied Contents	Board(s)	Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	RF, Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	-	WizFi360
Voltage - Supply	-	3.6 - 5.5 V
Voltage - Supply	-	3 - 4.5 V

RF TXRX MOD WIFI TH SMD

Part	Serial Interfaces	Current - Transmitting	Modulation	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Min]	Frequency [Max]	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Protocol	Package / Case	Current - Receiving	Antenna Type	Sensitivity	Data Rate	Frequency	Function	Platform	Contents	Type	Utilized IC / Part	For Use With/Related Products	Supplied Contents
WIZnet WIZFI360-PA	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace	-95 dBm	72.2 Mbps
WIZnet WIZFI360-CON	UART	230 mA	CCK, DSSS, OFDM	Surface Mount	3.6 V	3 V	2.4 GHz	2.4835 GHz	19 dBm	85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Antenna Not Included, I-PEX	-95 dBm	72.2 Mbps
WIZnet WIZFI360IO-H	UART	230 mA		Through Hole	3.6 V	3 V				85 °C	-40 °C	WiFi	802.11b/g/n	20-DIP Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360IO-C	UART	230 mA		Chassis Mount	5.5 V	4.5 V				85 °C	-40 °C	WiFi	802.11b/g/n	Module	110 mA	Integrated, Trace		2 Mbps	2.4 GHz
WIZnet WIZFI360-EVB-SHIELD																				WiFi	Arduino	Board(s)	RF	WizFi360
WIZnet WIZFI360-EVB-MINI																			2.4 GHz				Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)		WizFi360	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.95

General part information

WizFi360 - Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board
