4941-0.5-3(5)

Obsolete

3M (TC)

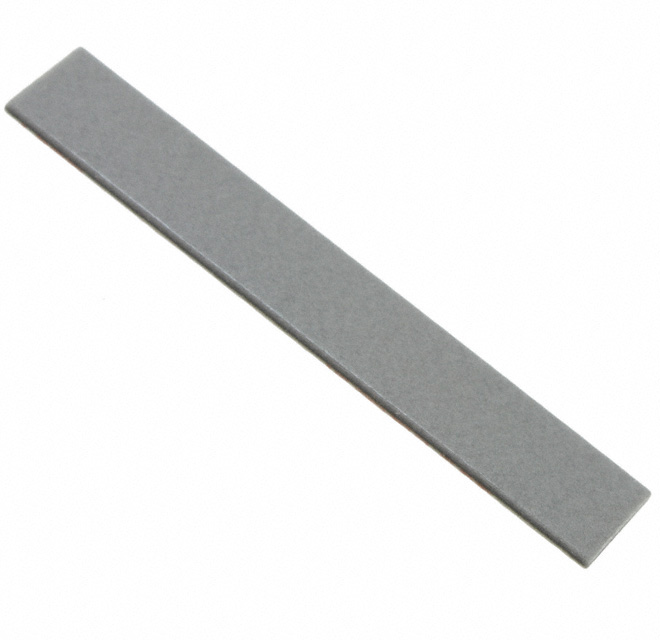

TAPE DBL SIDED GRAY 1/2"X3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4941-0.5-3(5)

Obsolete

3M (TC)

TAPE DBL SIDED GRAY 1/2"X3"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4941-0.5-3(5)

Adhesive	Acrylic
Backing, Carrier	Acrylic Foam
Color	Gray
Length	76.2 mm
Length [x]	3 in
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	1.143 mm
Thickness	45 mils
Thickness	0.045 in
Usage	General Purpose
Width	0.5 in
Width	12.7 mm
Width	0.5 in

4941 Series

Part	Color	Width	Width	Width	Backing, Carrier	Tape Type	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Usage	Shelf Life Start	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Shelf Life	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Width [y]	Width [y]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Length [x]
3M (TC) 4941-GRAY-1/2"X36YD-BULK	Gray	0.5 in	12.7 mm	0.5 in	Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft
3M (TC) 3M 4941 CIRCLE-3"-100	Gray				Paper	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F		Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months				0.003 in	3 mils	0.076 mm	76.2 mm	3 "	42 mils	0.042 in	1.067 mm
3M (TC) 4941-2-36	Gray				Paper	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	199 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft									2 "	50.8 mm
3M (TC) 4941-0.5-5	Gray	0.5 in	12.7 mm	0.5 in	Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	5 yd	4.6 m	15 ft
3M (TC) 4941-3-5	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	5 yd	4.6 m	15 ft				76.2 mm	3 in
3M (TC) 4941F-GRAY-1/2"X36YD	Gray	0.5 in	12.7 mm	0.5 in		Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft											0.04 in	1.016 mm	40 mils	0.005 "	5 mils	0.127 mm
3M (TC) 4941-1-3(5)	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months		76.2 mm					25.4 mm	1 in												3 in
3M (TC) 4941-1-2(5)	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months							25.4 mm	1 in
3M (TC) 4941-1"X36YD-DKGRAY	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Manufacture	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft				25.4 mm	1 in
3M (TC) 4941-0.5-3(5)	Gray	0.5 in	12.7 mm	0.5 in	Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months		76.2 mm																		3 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4941 Series

Double Coated, Double Sided Tape Acrylic Adhesive Gray 0.50" (12.70mm) 1/2" X 3.00" (76.20mm)

Documents

Technical documentation and resources
