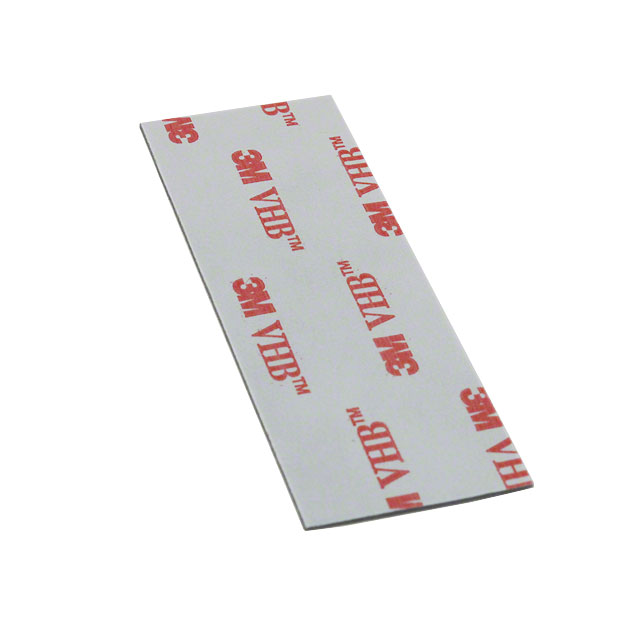

4941-1-3(5)

Obsolete

3M (TC)

TAPE DBL COATED/SIDED GRAY 1"X3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4941-1-3(5)

Obsolete

3M (TC)

TAPE DBL COATED/SIDED GRAY 1"X3"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4941-1-3(5)

Adhesive	Acrylic
Backing, Carrier	Acrylic Foam
Color	Gray
Length	76.2 mm
Length [x]	3 in
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	1.143 mm
Thickness	45 mils
Thickness	0.045 in
Usage	General Purpose
Width [x]	25.4 mm
Width [x]	1 in

4941 Series

Part	Color	Width	Width	Width	Backing, Carrier	Tape Type	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Usage	Shelf Life Start	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Shelf Life	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Width [y]	Width [y]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Length [x]
3M (TC) 4941-GRAY-1/2"X36YD-BULK	Gray	0.5 in	12.7 mm	0.5 in	Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft
3M (TC) 3M 4941 CIRCLE-3"-100	Gray				Paper	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F		Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months				0.003 in	3 mils	0.076 mm	76.2 mm	3 "	42 mils	0.042 in	1.067 mm
3M (TC) 4941-2-36	Gray				Paper	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	199 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft									2 "	50.8 mm
3M (TC) 4941-0.5-5	Gray	0.5 in	12.7 mm	0.5 in	Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	5 yd	4.6 m	15 ft
3M (TC) 4941-3-5	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	5 yd	4.6 m	15 ft				76.2 mm	3 in
3M (TC) 4941F-GRAY-1/2"X36YD	Gray	0.5 in	12.7 mm	0.5 in		Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft											0.04 in	1.016 mm	40 mils	0.005 "	5 mils	0.127 mm
3M (TC) 4941-1-3(5)	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months		76.2 mm					25.4 mm	1 in												3 in
3M (TC) 4941-1-2(5)	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months							25.4 mm	1 in
3M (TC) 4941-1"X36YD-DKGRAY	Gray				Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Manufacture	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months	36 yd	32.9 m	108 ft				25.4 mm	1 in
3M (TC) 4941-0.5-3(5)	Gray	0.5 in	12.7 mm	0.5 in	Acrylic Foam	Double Coated Double Sided	Acrylic	4 °C 40 °F	38 °C 100 °F	General Purpose	Date of Shipment	200 °F	93 °C	1.143 mm	45 mils	0.045 in	24 Months		76.2 mm																		3 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4941 Series

Double Coated, Double Sided Tape Acrylic Adhesive Gray 1.00" (25.40mm) X 3.00" (76.20mm)
