C14610B0160024

Active

Amphenol Tuchel Industrial

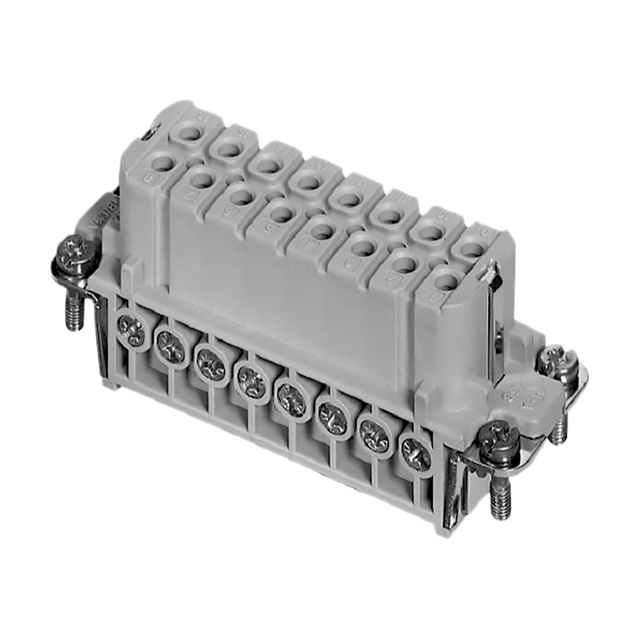

INSERT FEMALE 16POS+1GND SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 16POS+1GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0160024

Contact Finish	Silver
Contact Material	Brass
Current Rating (Amps)	14 A
Gender	Female
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A16
Termination Style	Screw
Voltage Rating	250 VDC

Part	Voltage Rating	Gender	Termination Style	Housing Material	Number of Positions	Size	Contact Material	Contact Finish	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Contact Type
Amphenol Tuchel Industrial C14610B0160024	250 VDC	Female	Screw	Polybutylene Terephthalate (PBT)	16+Ground	A16	Brass	Silver	14 A	UL94 V-0	100 °C	-40 °C
Amphenol Tuchel Industrial C14610B0161024	250 VDC	Female	Screw	Polybutylene Terephthalate (PBT)	16+Ground	A16	Brass	Silver	14 A	UL94 V-0	100 °C	-40 °C
Amphenol Tuchel Industrial C14610B0160044	250 VDC	Female	Screw	Polybutylene Terephthalate (PBT)	16+Ground	A10	Brass	Silver	14 A	UL94 V-0	100 °C	-40 °C
Amphenol Tuchel Industrial C14610B0161023	600 V	Female	Screw	Polyamide (PA) Nylon Glass Filled		E24	Brass	Silver	10 A	UL94 V-0	125 °C	-40 °C	Black	16	2	Ground
Amphenol Tuchel Industrial C14610B0160001	600 V	Female	Crimp		16+Ground	E16			10 A	UL94 V-0	125 °C	-40 °C	Gray				Insert without Contacts	C 16-3
Amphenol Tuchel Industrial C14610B0165001	600 V	Female	Crimp		16+Ground	E16			10 A	UL94 V-0	125 °C	-40 °C	Gray				Insert without Contacts	heavy\|mate® C146 E EE
Amphenol Tuchel Industrial C14610B0160021	600 V	Female	Screw		16+Ground	E16	Brass	Silver	10 A	UL94 V-0	125 °C	-40 °C	Gray
Amphenol Tuchel Industrial C14610B0161021	600 V	Female	Screw		16+Ground	E16	Brass	Silver	10 A	UL94 V-0	125 °C	-40 °C	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert 16+Ground Position Screw
