C14610B0161021

Active

Amphenol Tuchel Industrial

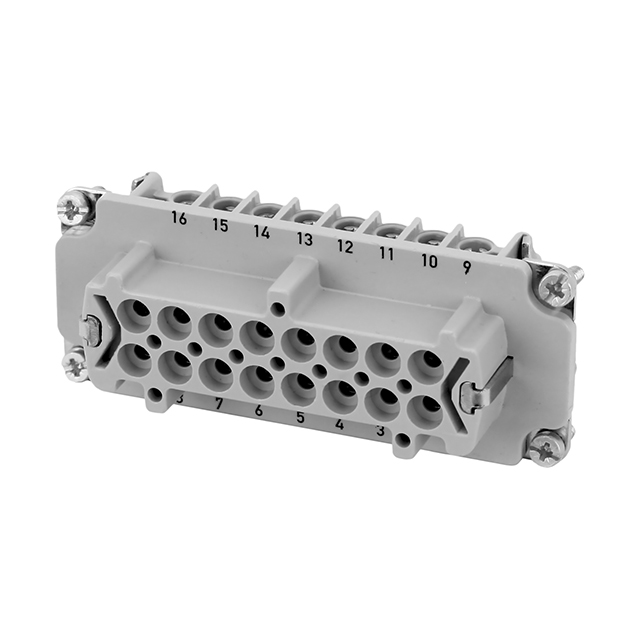

INSERT FEMALE 16POS+1GND SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 16POS+1GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0161021

Color	Gray
Contact Finish	Silver
Contact Material	Brass
Current Rating (Amps)	10 A
Gender	Female
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E16
Termination Style	Screw
Voltage Rating	600 V

Part	Voltage Rating	Gender	Termination Style	Housing Material	Number of Positions	Size	Contact Material	Contact Finish	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Contact Type
Amphenol Tuchel Industrial C14610B0160024	250 VDC	Female	Screw	Polybutylene Terephthalate (PBT)	16+Ground	A16	Brass	Silver	14 A	UL94 V-0	100 °C	-40 °C
Amphenol Tuchel Industrial C14610B0161024	250 VDC	Female	Screw	Polybutylene Terephthalate (PBT)	16+Ground	A16	Brass	Silver	14 A	UL94 V-0	100 °C	-40 °C
Amphenol Tuchel Industrial C14610B0160044	250 VDC	Female	Screw	Polybutylene Terephthalate (PBT)	16+Ground	A10	Brass	Silver	14 A	UL94 V-0	100 °C	-40 °C
Amphenol Tuchel Industrial C14610B0161023	600 V	Female	Screw	Polyamide (PA) Nylon Glass Filled		E24	Brass	Silver	10 A	UL94 V-0	125 °C	-40 °C	Black	16	2	Ground
Amphenol Tuchel Industrial C14610B0160001	600 V	Female	Crimp		16+Ground	E16			10 A	UL94 V-0	125 °C	-40 °C	Gray				Insert without Contacts	C 16-3
Amphenol Tuchel Industrial C14610B0165001	600 V	Female	Crimp		16+Ground	E16			10 A	UL94 V-0	125 °C	-40 °C	Gray				Insert without Contacts	heavy\|mate® C146 E EE
Amphenol Tuchel Industrial C14610B0160021	600 V	Female	Screw		16+Ground	E16	Brass	Silver	10 A	UL94 V-0	125 °C	-40 °C	Gray
Amphenol Tuchel Industrial C14610B0161021	600 V	Female	Screw		16+Ground	E16	Brass	Silver	10 A	UL94 V-0	125 °C	-40 °C	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 16+Ground Position Screw
