SOLC-120-02-S-Q-P
ActiveSamtec Inc.

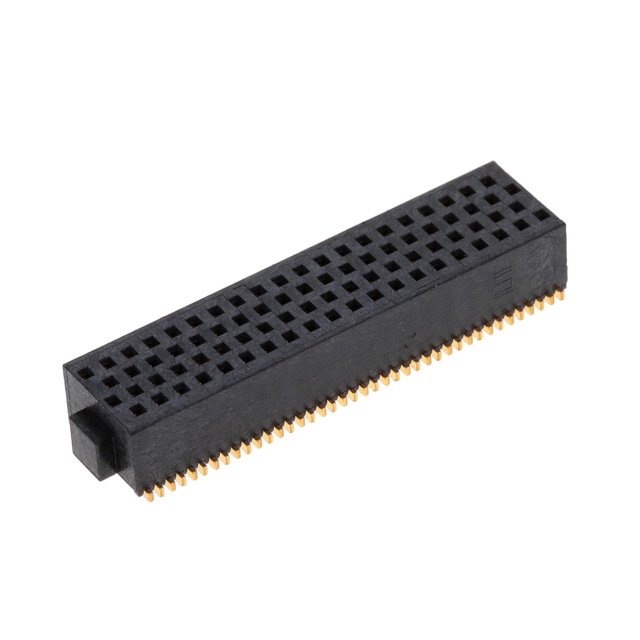

CONN RCPT 80POS 0.05 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
SOLC-120-02-S-Q-P
ActiveSamtec Inc.
CONN RCPT 80POS 0.05 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SOLC-120-02-S-Q-P |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 2.4 A |
| Fastening Type | Push-Pull |
| Features | Pick and Place |
| Insulation Color | Black |
| Insulation Height [z] | 0.16 in |
| Insulation Height [z] | 4.06 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Termination | Solder |
SOLC-120 Series
| Part | Contact Material | Contact Finish - Post | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Insulation Color | Fastening Type | Material Flammability Rating | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Mounting Type | Contact Type | Contact Finish - Mating | Current Rating (Amps) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Insulation Material | Connector Type | Features | Row Spacing - Mating | Row Spacing - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 10 çin | 0.25 çm | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Board Guide | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 3 µin | 0.076 µm | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 30 Áin | 0.76 Ám | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 30 Áin | 0.76 Ám | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Board Guide Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 10 çin | 0.25 çm | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 30 Áin | 0.76 Ám | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Board Guide Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 10 çin | 0.25 çm | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 10 çin | 0.25 çm | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Board Lock Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 30 Áin | 0.76 Ám | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Board Lock Pick and Place | 0.05 in | 1.27 mm | 80 |
Samtec Inc. | Phosphor Bronze | Gold | 0.16 in | 4.06 mm | 0.05 in | 1.27 mm | Black | Push-Pull | UL94 V-0 | All | 10 çin | 0.25 çm | Solder | Surface Mount | Forked | Gold | 2.4 A | 3 µin | 0.076 µm | -55 °C | 125 °C | Square | Liquid Crystal Polymer (LCP) | Receptacle | Board Guide Pick and Place | 0.05 in | 1.27 mm | 80 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.01 | |
| 10 | $ 13.27 | |||
| 25 | $ 13.02 | |||
Description
General part information
SOLC-120 Series
80 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
