804-22-009-10-004101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 9POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 9POS PCB

Technical Specifications

Parameters and characteristics for this part

Part	Material	Contact Finish	Row Spacing [x]	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Number of Contacts
Mill-Max Manufacturing Corp. 804-22-018-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3
Mill-Max Manufacturing Corp. 804-22-024-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	24
Mill-Max Manufacturing Corp. 804-22-015-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	15
Mill-Max Manufacturing Corp. 804-22-009-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	9
Mill-Max Manufacturing Corp. 804-22-021-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	21

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

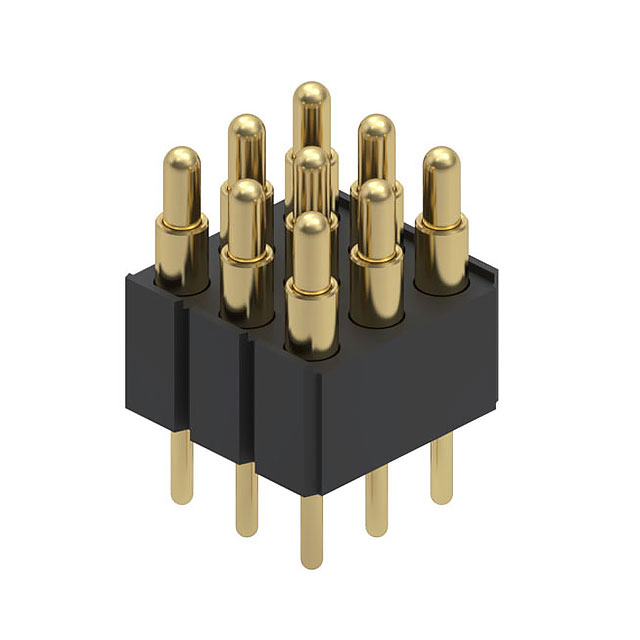

9 Position Spring Piston Connector Through Hole

Technical documentation and resources

No documents available
