804-22-018-10-004101

Active

Mill-Max Manufacturing Corp.

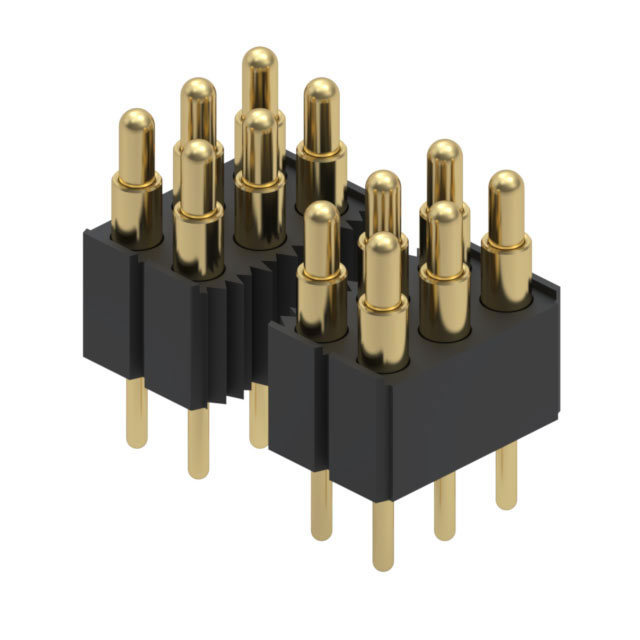

CONN SPRING PISTON 18POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 18POS PCB

Technical Specifications

Parameters and characteristics for this part

Part	Material	Contact Finish	Row Spacing [x]	Row Spacing	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Number of Contacts
Mill-Max Manufacturing Corp. 804-22-018-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3
Mill-Max Manufacturing Corp. 804-22-024-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	24
Mill-Max Manufacturing Corp. 804-22-015-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	15
Mill-Max Manufacturing Corp. 804-22-009-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	9
Mill-Max Manufacturing Corp. 804-22-021-10-004101	Brass Alloy	Gold	0.1 in	2.54 mm	Piston	2.54 mm	0.1 in	10 Áin	0.25 Ám	Through Hole	3	21

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Spring Piston Connector Through Hole

Technical documentation and resources

No documents available
