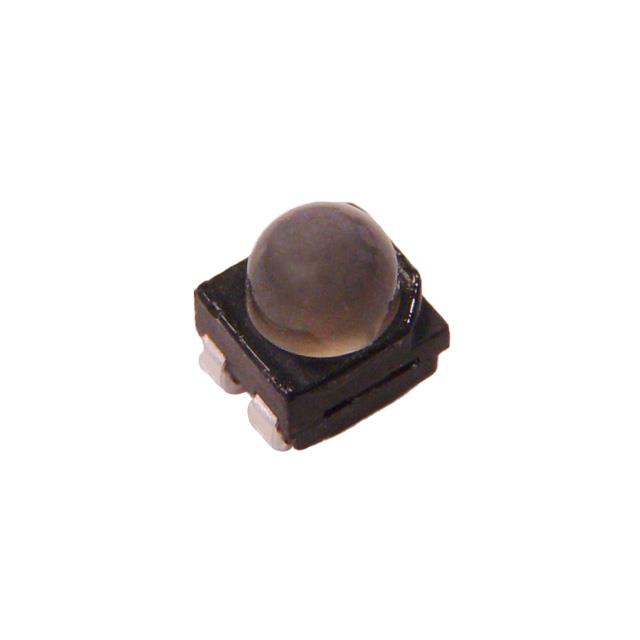

CLM2C-GCA-CYBB0793

Obsolete

Cree LED

SMD LM3-C SERIES LED - GREEN COLOR, 3550-9000MCD,HUE FROM G7 TO G9,TAPE & REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLM2C-GCA-CYBB0793

Obsolete

Cree LED

SMD LM3-C SERIES LED - GREEN COLOR, 3550-9000MCD,HUE FROM G7 TO G9,TAPE & REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.31
		10	$ 0.29
		100	$ 0.27
		1000	$ 0.24
	Digi-Reel®	1	$ 0.31
		10	$ 0.29
		100	$ 0.27
		1000	$ 0.24
	Tape & Reel (TR)	2300	$ 0.24

Description

General part information

CLM2C Series

SMD LEDs is packaged in the industry standard package. These LEDs have high reliability performance and are designed to work under a wide range of environmental conditions. This high reliability feature makes them ideally suited to be used under Architect

Documents

Technical documentation and resources

Specification	CLM2C-GCA-CYBB0793	CLM2C Series

Color	Green	Red, Green, Amber, Blue
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	3.86 mm	3.86 mm
Lens Size [diameter]	2.45 mm	2.45 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	6275 mcd	1960 - 6275 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-PLCC	4-PLCC
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	4-PLCC	4-PLCC
Voltage - Forward (Vf) (Typ)	3.2 V	2 - 3.2 V
Wavelength - Dominant	528 nm	468 - 622 nm

Part	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Configuration	Lens Style	Height (Max) [Max] [z]	Wavelength - Dominant	Lens Size [diameter]	Supplier Device Package	Package / Case	Millicandela Rating
Cree LED CLM2C-RCA-CYAZ0BB3	20 mA	2.8 mm	3.2 mm	Red	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	622 nm	2.45 mm	4-PLCC	4-PLCC	4200 mcd
Cree LED CLM2C-RCA-CXBZ0BB3	20 mA	2.8 mm	3.2 mm	Red	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	622 nm	2.45 mm	4-PLCC	4-PLCC	3920 mcd
Cree LED CLM2C-GCA-CYBB0793	20 mA	2.8 mm	3.2 mm	Green	3.2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	528 nm	2.45 mm	4-PLCC	4-PLCC	6275 mcd
Cree LED CLM2C-ACA-CYAA0253	20 mA	2.8 mm	3.2 mm	Amber	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	590 nm	2.45 mm	4-PLCC	4-PLCC	4950 mcd
Cree LED CLM2C-BCA-CWAXB353	20 mA	2.8 mm	3.2 mm	Blue	3.2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	468 nm	2.45 mm	4-PLCC	4-PLCC	1960 mcd
Cree LED CLM2C-GCA-CXBB07A3	20 mA	2.8 mm	3.2 mm	Green	3.2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm		2.45 mm	4-PLCC	4-PLCC	5620 mcd
Cree LED CLM2C-ACA-CYBA0343	20 mA	2.8 mm	3.2 mm	Amber	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	590 nm	2.45 mm	4-PLCC	4-PLCC	5325 mcd
Cree LED CLM2C-RCA-CWBZ0BB3	20 mA	2.8 mm	3.2 mm	Red	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	622 nm	2.45 mm	4-PLCC	4-PLCC	3500 mcd
