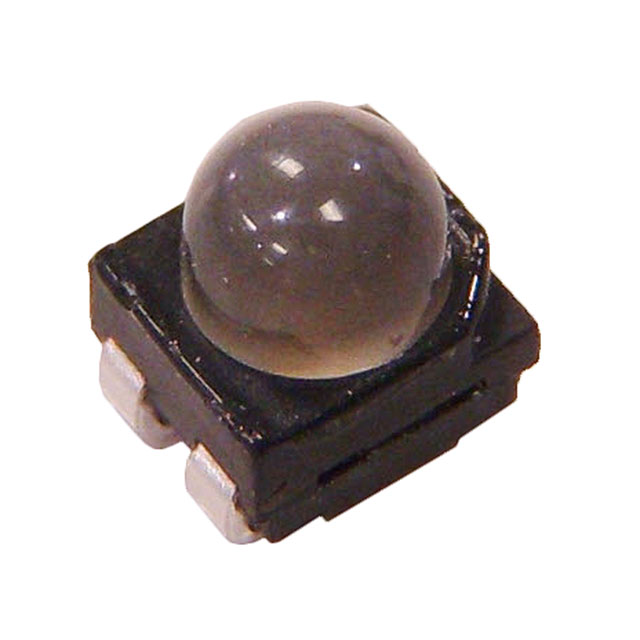

CLM2C-GCA-CXBB07A3

Obsolete

Cree LED

LED GREEN 4PLCC SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED GREEN 4PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED 4PLCC SMD

Part	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Configuration	Lens Style	Height (Max) [Max] [z]	Wavelength - Dominant	Lens Size [diameter]	Supplier Device Package	Package / Case	Millicandela Rating
Cree LED CLM2C-RCA-CYAZ0BB3	20 mA	2.8 mm	3.2 mm	Red	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	622 nm	2.45 mm	4-PLCC	4-PLCC	4200 mcd
Cree LED CLM2C-RCA-CXBZ0BB3	20 mA	2.8 mm	3.2 mm	Red	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	622 nm	2.45 mm	4-PLCC	4-PLCC	3920 mcd
Cree LED CLM2C-GCA-CYBB0793	20 mA	2.8 mm	3.2 mm	Green	3.2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	528 nm	2.45 mm	4-PLCC	4-PLCC	6275 mcd
Cree LED CLM2C-ACA-CYAA0253	20 mA	2.8 mm	3.2 mm	Amber	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	590 nm	2.45 mm	4-PLCC	4-PLCC	4950 mcd
Cree LED CLM2C-BCA-CWAXB353	20 mA	2.8 mm	3.2 mm	Blue	3.2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	468 nm	2.45 mm	4-PLCC	4-PLCC	1960 mcd
Cree LED CLM2C-GCA-CXBB07A3	20 mA	2.8 mm	3.2 mm	Green	3.2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm		2.45 mm	4-PLCC	4-PLCC	5620 mcd
Cree LED CLM2C-ACA-CYBA0343	20 mA	2.8 mm	3.2 mm	Amber	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	590 nm	2.45 mm	4-PLCC	4-PLCC	5325 mcd
Cree LED CLM2C-RCA-CWBZ0BB3	20 mA	2.8 mm	3.2 mm	Red	2 V	Surface Mount	Standard	Round with Domed Top	3.86 mm	622 nm	2.45 mm	4-PLCC	4-PLCC	3500 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 530nm LED Indication - Discrete 3.2V 4-PLCC
