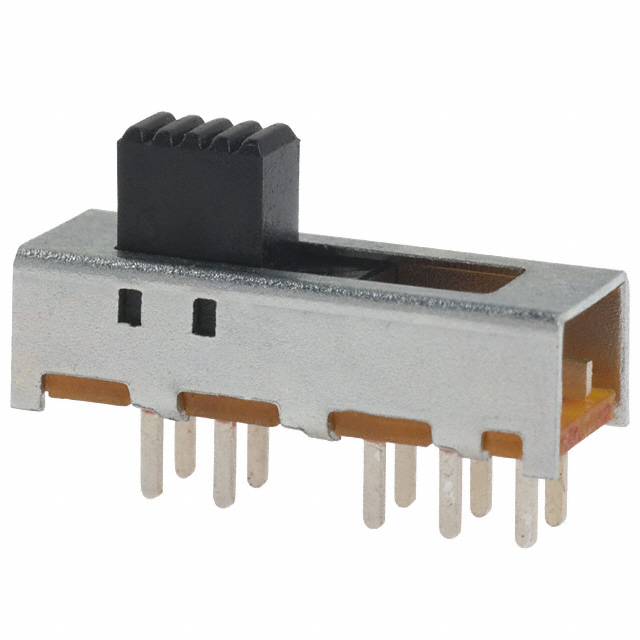

STS2400PC

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DP4T 300MA 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DP4T 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	STS2400PC

Actuator Length [x]	4 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	DP4T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Shorting
Current Rating (Amps)	300 mA
Features	Epoxy Sealed Terminals
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Operating Force	0.25 kgf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On-On-On
Switch Travel	2.5 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Actuator Length [x]	Contact Finish	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Mechanical Life	Contact Timing	Features	Mounting Type	Switch Function	Termination Style	Switch Travel	Voltage Rating - AC	Operating Force	Contact Material	Actuator Type	Current Rating (Amps)
TE Connectivity Raychem Cable Protection STS220PC	4 mm	Silver	DPDT	-10 °C	60 °C	Polyoxymethylene (Acetal) (POM)	10000 Steps	Shorting	Epoxy Sealed Terminals	Through Hole	On-On	PC Pin	2.5 mm	125 V	0.25 kgf	Copper Alloy	Standard	300 mA
TE Connectivity Raychem Cable Protection STS2300PC	4 mm	Silver	DP3T	-10 °C	60 °C	Polyoxymethylene (Acetal) (POM)	10000 Steps	Shorting	Epoxy Sealed Terminals	Through Hole	On-On-On	PC Pin	2.5 mm	125 V	0.25 kgf	Copper Alloy	Standard	300 mA
TE Connectivity Raychem Cable Protection STS230PC	4 mm	Silver	DP3T	-10 °C	60 °C	Polyoxymethylene (Acetal) (POM)	10000 Steps	Shorting	Epoxy Sealed Terminals	Through Hole	On-On-On	PC Pin	2.5 mm	125 V	0.25 kgf	Copper Alloy	Standard	300 mA
TE Connectivity Raychem Cable Protection STS2400PC	4 mm	Silver	DP4T	-10 °C	60 °C	Polyoxymethylene (Acetal) (POM)	10000 Steps	Shorting	Epoxy Sealed Terminals	Through Hole	On-On-On-On	PC Pin	2.5 mm	125 V	0.25 kgf	Copper Alloy	Standard	300 mA
TE Connectivity Raychem Cable Protection STS260PC	4 mm	Silver	DP6T	-10 °C	60 °C	Polyoxymethylene (Acetal) (POM)	10000 Steps	Shorting	Epoxy Sealed Terminals	Through Hole		PC Pin	2.5 mm	125 V	0.25 kgf	Copper Alloy	Standard	300 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch DP4T Through Hole
