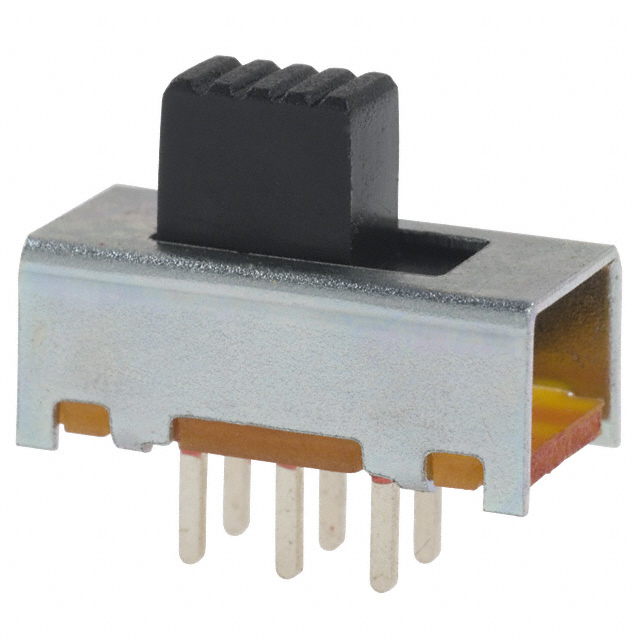

Specification	STS220PC

Actuator Length	4 mm
Actuator Material	Polyoxymethylene (Acetal) (POM)
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Shorting (MBB)
Current Rating	300 mA
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	10000 Cycles
Mounting Type	Through Hole
Operating Force	0.25 kgf
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-10 °C
Switch Function	On-On
Switch Travel	2.5 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

STS2 Series

Part	Mechanical Life (Cycles)	Switch Travel	Actuator Material	Operating Force	Current Rating	Contact Material	Actuator Length	Contact Finish	Actuator Type	Termination Style	Voltage Rating - AC	Mounting Type	Circuit	Features	Contact Timing	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)
TE Connectivity AMP Connectors STS220PC	10000 Cycles	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DPDT	Epoxy Sealed Terminals	Shorting (MBB)	On-On	60 °C	-10 °C
TE Connectivity AMP Connectors STS2300PC	10000 Cycles	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP3T	Epoxy Sealed Terminals	Shorting (MBB)	On-On-On	60 °C	-10 °C
TE Connectivity AMP Connectors STS230PC	10000 Cycles	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP3T	Epoxy Sealed Terminals	Shorting (MBB)	On-On-On	60 °C	-10 °C
TE Connectivity AMP Connectors STS2400PC	10000 Cycles	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP4T	Epoxy Sealed Terminals	Shorting (MBB)	On-On-On-On	60 °C	-10 °C
TE Connectivity AMP Connectors STS260PC	10000 Cycles	2.5 mm	Polyoxymethylene (Acetal) (POM)	0.25 kgf	300 mA	Copper Alloy	4 mm	Silver	Standard	PC Pin	125 V	Through Hole	DP6T	Epoxy Sealed Terminals	Shorting (MBB)		60 °C	-10 °C
