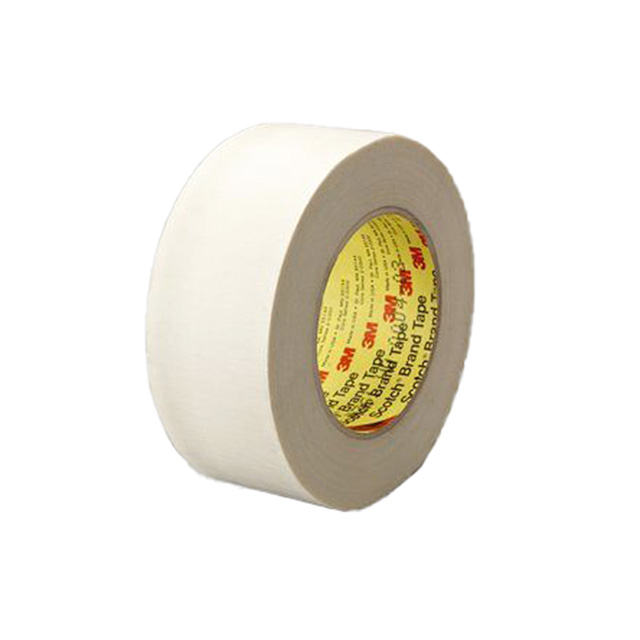

361 1.5"X60YD

Active

3M (TC)

TAPE GLASS CLOTH WHT 1 1/2"X60YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

361 1.5"X60YD

Active

3M (TC)

TAPE GLASS CLOTH WHT 1 1/2"X60YD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	361 1.5"X60YD

Adhesive	Silicone Thermosetting
Backing, Carrier	Glass Cloth
Color	White
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Tape Type	Glass Cloth
Temperature Range [Max]	450 °F, 232 °C
Temperature Range [Min]	-65 °F, -54 °C
Thickness	0.0064 "
Thickness	0.163 mm
Thickness	6.4 mils
Thickness - Adhesive	0.036 mm
Thickness - Adhesive	1.4 mils
Thickness - Adhesive	0.0014 "
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	High Temperature Adhesion
Width	1.5 "
Width	38.1 mm
Width	1 1/2

361 Series

Part	Usage	Temperature Range [Min]	Temperature Range [Max]	Shelf Life Start	Adhesive	Backing, Carrier	Color	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Length	Length	Length	Width	Width	Width	Shelf Life	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Width [x]	Width [x]	Temperature Range [Max]	Temperature Range [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier
3M (TC) 361 1.5"X60YD	High Temperature Adhesion	-65 °F -54 °C	232 °C 450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White	0.005 "	5 mils	0.127 mm	60 yds	55 m	180 ft	1.5 "	38.1 mm	1 1/2	24 Months	0.0064 "	0.163 mm	6.4 mils	0.036 mm	1.4 mils	0.0014 "	Glass Cloth
3M (TC) 361 1"X60YD	High Temperature Adhesion	-65 °F -54 °C	232 °C 450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White	0.005 "	5 mils	0.127 mm	60 yds	55 m	180 ft				24 Months	0.0064 "	0.163 mm	6.4 mils	0.036 mm	1.4 mils	0.0014 "	Glass Cloth	25.4 mm	1 in
3M (TC) 361-3/4"X60YD-BOX	High Temperature Adhesion	-65 °F	450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White				60 yds	55 m	180 ft	0.75 in	0.75 in		24 Months	0.0075 in	0.191 mm	7.5 mils	0.053 mm	2.1 mils	0.0021 "	Glass Cloth			232 °C	-54 °C	16 °C 60 °F	27 °C 80 °F	19.05 mm	5.4 mils	0.14 mm	0.0054 "
3M (TC) 361-1"X60YD	High Temperature Adhesion	-65 °F	450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White				60 yds	55 m	180 ft				24 Months	0.0075 in	0.191 mm	7.5 mils	0.053 mm	2.1 mils	0.0021 "	Glass Cloth	25.4 mm	1 in	232 °C	-54 °C	16 °C 60 °F	27 °C 80 °F		5.4 mils	0.14 mm	0.0054 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	24	$ 174.34

Description

General part information

361 Series

Glass Cloth Tape Silicone Thermosetting Adhesive White 1.50" (38.10mm) 1 1/2" X 180' (55.0m) 60 yds
