361-1"X60YD

Active

3M (TC)

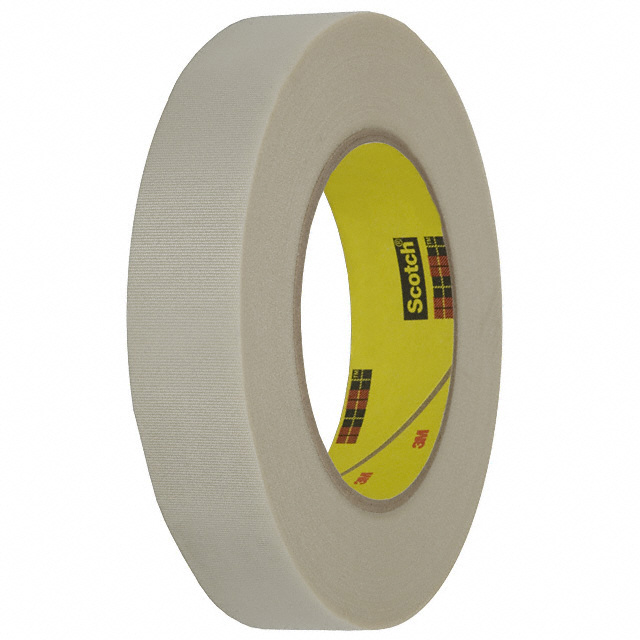

TAPE GLASS CLOTH WHITE 1"X60YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher Datasheet

361-1"X60YD

Active

3M (TC)

TAPE GLASS CLOTH WHITE 1"X60YDS

Deep-Dive with AI

DocumentsDate Code Decipher Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	361-1"X60YD

Adhesive	Silicone Thermosetting
Backing, Carrier	Glass Cloth
Color	White
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Glass Cloth
Temperature Range [Max]	450 °F
Temperature Range [Max]	232 °C
Temperature Range [Min]	-65 °F
Temperature Range [Min]	-54 °C
Thickness	7.5 mils
Thickness	0.0075 in
Thickness	0.191 mm
Thickness - Adhesive	2.1 mils
Thickness - Adhesive	0.0021 "
Thickness - Adhesive	0.053 mm
Thickness - Backing, Carrier	5.4 mils
Thickness - Backing, Carrier	0.14 mm
Thickness - Backing, Carrier	0.0054 "
Usage	High Temperature Adhesion
Width [x]	25.4 mm
Width [x]	1 in

361 Series

Part	Usage	Temperature Range [Min]	Temperature Range [Max]	Shelf Life Start	Adhesive	Backing, Carrier	Color	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Length	Length	Length	Width	Width	Width	Shelf Life	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Tape Type	Width [x]	Width [x]	Temperature Range [Max]	Temperature Range [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier
3M (TC) 361 1.5"X60YD	High Temperature Adhesion	-65 °F -54 °C	232 °C 450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White	0.005 "	5 mils	0.127 mm	60 yds	55 m	180 ft	1.5 "	38.1 mm	1 1/2	24 Months	0.0064 "	0.163 mm	6.4 mils	0.036 mm	1.4 mils	0.0014 "	Glass Cloth
3M (TC) 361 1"X60YD	High Temperature Adhesion	-65 °F -54 °C	232 °C 450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White	0.005 "	5 mils	0.127 mm	60 yds	55 m	180 ft				24 Months	0.0064 "	0.163 mm	6.4 mils	0.036 mm	1.4 mils	0.0014 "	Glass Cloth	25.4 mm	1 in
3M (TC) 361-3/4"X60YD-BOX	High Temperature Adhesion	-65 °F	450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White				60 yds	55 m	180 ft	0.75 in	0.75 in		24 Months	0.0075 in	0.191 mm	7.5 mils	0.053 mm	2.1 mils	0.0021 "	Glass Cloth			232 °C	-54 °C	16 °C 60 °F	27 °C 80 °F	19.05 mm	5.4 mils	0.14 mm	0.0054 "
3M (TC) 361-1"X60YD	High Temperature Adhesion	-65 °F	450 °F	Date of Manufacture	Silicone Thermosetting	Glass Cloth	White				60 yds	55 m	180 ft				24 Months	0.0075 in	0.191 mm	7.5 mils	0.053 mm	2.1 mils	0.0021 "	Glass Cloth	25.4 mm	1 in	232 °C	-54 °C	16 °C 60 °F	27 °C 80 °F		5.4 mils	0.14 mm	0.0054 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 132.84
		10	$ 124.54
		36	$ 116.24
		72	$ 110.43

Description

General part information

361 Series

Glass Cloth Tape Silicone Thermosetting Adhesive White 1.00" (25.40mm) X 180' (55.0m) 60 yds

Documents

Technical documentation and resources
