R5BBLKREDGF2

Active

E-Switch

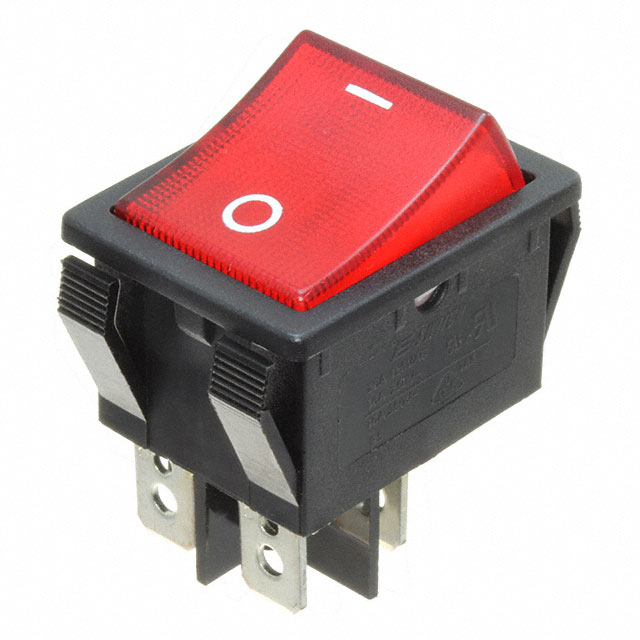

SWITCH ROCKER DPST 20A 125V

Deep-Dive with AI

Search across all available documentation for this part.

R5BBLKREDGF2

Active

E-Switch

SWITCH ROCKER DPST 20A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R5BBLKREDGF2

Actuator Marking	O I
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	CSA, UL
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	250 VAC
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

R5BBLKRE Series

Part	Voltage Rating - AC	Illumination Type, Color	Mechanical Life	Color - Actuator/Cap	Switch Function	Illumination Voltage (Nominal)	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Electrical Life	Approval Agency	Termination Style	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Current Rating (Amps)
E-Switch R5BBLKREDAF2	125 V	Neon Red	30000 Steps	Red	On-Off	250 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	Dot	20 A
E-Switch R5BBLKREDFF1	125 V	Neon Red	30000 Steps	Red	On-Off	125 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	O -	20 A
E-Switch R5BBLKREDGF2	125 V	Neon Red	30000 Steps	Red	On-Off	250 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	O I	20 A
E-Switch R5BBLKREDHF1	125 V	Neon Red	30000 Steps	Red	On-Off	125 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	Triangular Arrows with O	20 A
E-Switch R5BBLKREDFF2	125 V	Neon Red	30000 Steps	Red	On-Off	250 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	O -	20 A
E-Switch R5BBLKREDIF1	125 V	Neon Red	30000 Steps	Red	On-Off	125 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	ON OFF Vertical	20 A
E-Switch R5BBLKREDIF3	125 V	LED Red	30000 Steps	Red	On-Off	12 VDC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	ON OFF Vertical	20 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.36
		10	$ 3.01
		25	$ 2.86
		75	$ 2.72
		150	$ 2.59
		300	$ 2.48
		525	$ 2.27
		1050	$ 2.16

Description

General part information

R5BBLKRE Series

Rocker Switch DPST 20A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
