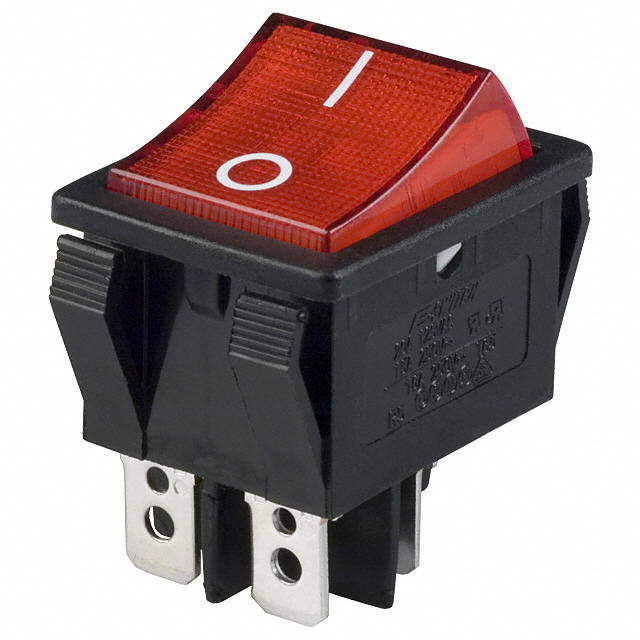

R5BBLKREDFF1

Active

E-Switch

SWITCH ROCKER DPST 20A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R5BBLKREDFF1

Actuator Marking	O -
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	CSA, UL
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	20 A
Electrical Life	10000 Cycles
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	125 VAC
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

R5BBLKRE Series

Part	Voltage Rating - AC	Illumination Type, Color	Mechanical Life	Color - Actuator/Cap	Switch Function	Illumination Voltage (Nominal)	Actuator Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Electrical Life	Approval Agency	Termination Style	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Current Rating (Amps)
E-Switch R5BBLKREDAF2	125 V	Neon Red	30000 Steps	Red	On-Off	250 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	Dot	20 A
E-Switch R5BBLKREDFF1	125 V	Neon Red	30000 Steps	Red	On-Off	125 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	O -	20 A
E-Switch R5BBLKREDGF2	125 V	Neon Red	30000 Steps	Red	On-Off	250 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	O I	20 A
E-Switch R5BBLKREDHF1	125 V	Neon Red	30000 Steps	Red	On-Off	125 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	Triangular Arrows with O	20 A
E-Switch R5BBLKREDFF2	125 V	Neon Red	30000 Steps	Red	On-Off	250 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	O -	20 A
E-Switch R5BBLKREDIF1	125 V	Neon Red	30000 Steps	Red	On-Off	125 VAC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	ON OFF Vertical	20 A
E-Switch R5BBLKREDIF3	125 V	LED Red	30000 Steps	Red	On-Off	12 VDC	Concave (Curved) - Illuminated	30 mm	22.2 mm	10000 Cycles	CSA UL	Quick Connect - 0.250" (6.3mm)	Panel Mount Snap-In	DPST	55 °C	-20 C	ON OFF Vertical	20 A
