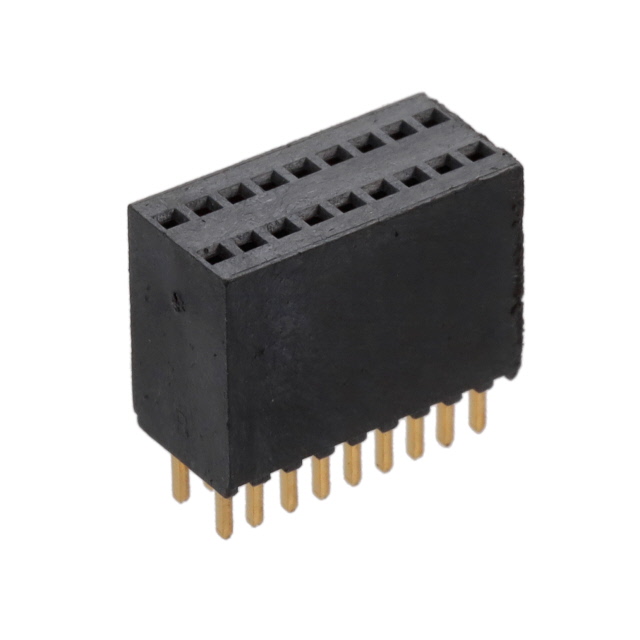

SMS-109-01-G-D

Active

Samtec Inc.

CONN SKT .050" 18POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SKT .050" 18POS

Technical Specifications

Parameters and characteristics for this part

Specification	SMS-109-01-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Material	Mounting Type	Insulation Color	Connector Type	Number of Rows	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SMS-109-01-S-D	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	0.335 "	8.51 mm	5 A	Tin	Gold	Solder	2.54 mm	0.1 in	Push-Pull	-55 °C	125 °C	Forked	Square	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	Black	Receptacle	2	18	All	0.05 in	1.27 mm
Samtec Inc. SMS-109-01-G-S	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	0.335 "	8.51 mm	5 A	Gold	Gold	Solder			Push-Pull	-55 °C	125 °C	Forked	Square	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	Black	Receptacle	1	9	All	0.05 in	1.27 mm	3 µin	0.076 µm
Samtec Inc. SMS-109-01-G-D	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	0.335 "	8.51 mm	5 A	Gold	Gold	Solder	2.54 mm	0.1 in	Push-Pull	-55 °C	125 °C	Forked	Square	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	Black	Receptacle	2	18	All	0.05 in	1.27 mm	3 µin	0.076 µm
