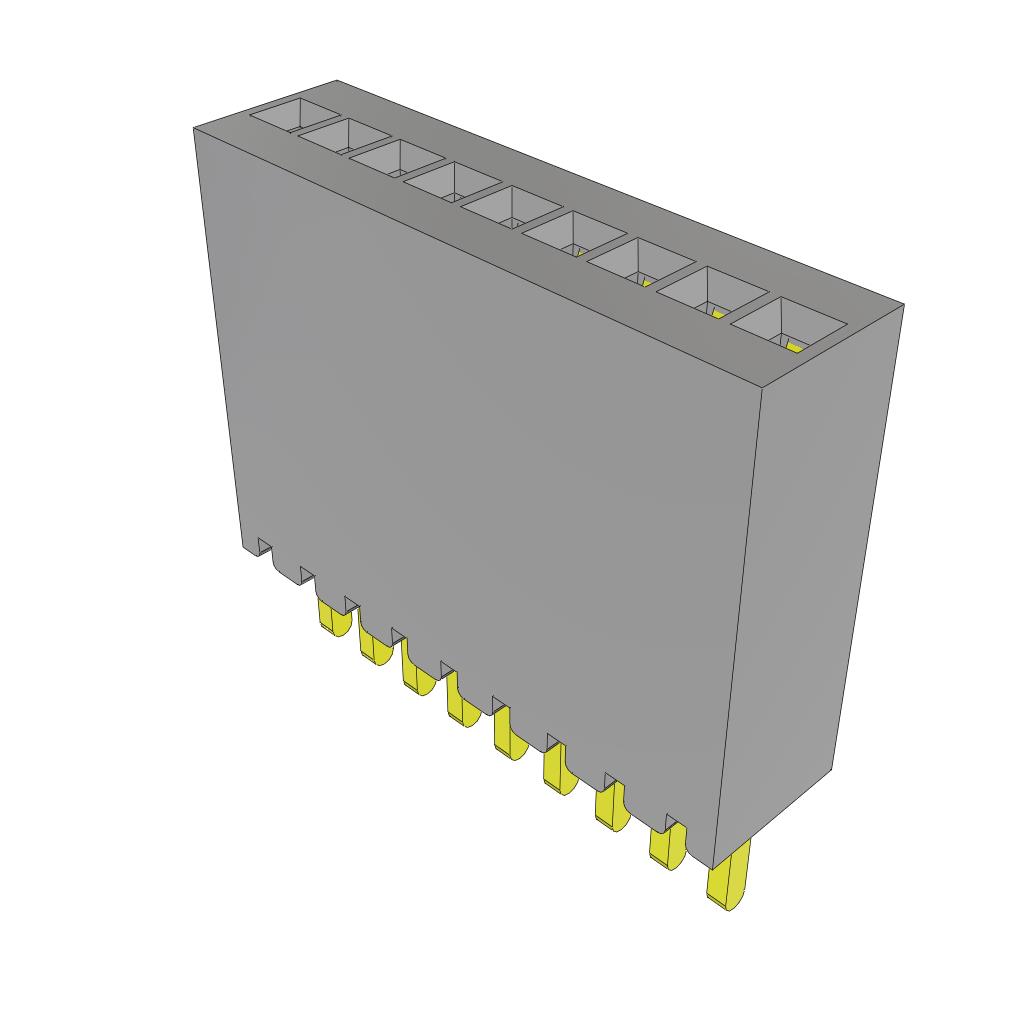

SMS-109-01-G-S
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 9 POS 1.27MM SOLDER ST THRU-HOLE BULK
Deep-Dive with AI
Search across all available documentation for this part.
SMS-109-01-G-S
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 9 POS 1.27MM SOLDER ST THRU-HOLE BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS-109-01-G-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Length - Post | 2.54 mm |
| Contact Length - Post | 0.1 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Termination | Solder |
SMS-109 Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Insulation Height | Insulation Height | Current Rating (Amps) | Contact Finish - Post | Contact Finish - Mating | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Material | Mounting Type | Insulation Color | Connector Type | Number of Rows | Number of Positions | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 30 Áin | 0.76 Ám | Liquid Crystal Polymer (LCP) | 0.335 " | 8.51 mm | 5 A | Tin | Gold | Solder | 2.54 mm | 0.1 in | Push-Pull | -55 °C | 125 °C | Forked | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Through Hole | Black | Receptacle | 2 | 18 | All | 0.05 in | 1.27 mm | ||
Samtec Inc. | 10 çin | 0.25 çm | Liquid Crystal Polymer (LCP) | 0.335 " | 8.51 mm | 5 A | Gold | Gold | Solder | Push-Pull | -55 °C | 125 °C | Forked | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Through Hole | Black | Receptacle | 1 | 9 | All | 0.05 in | 1.27 mm | 3 µin | 0.076 µm | ||
Samtec Inc. | 10 çin | 0.25 çm | Liquid Crystal Polymer (LCP) | 0.335 " | 8.51 mm | 5 A | Gold | Gold | Solder | 2.54 mm | 0.1 in | Push-Pull | -55 °C | 125 °C | Forked | Square | 2.54 mm | 0.1 in | Phosphor Bronze | Through Hole | Black | Receptacle | 2 | 18 | All | 0.05 in | 1.27 mm | 3 µin | 0.076 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SMS-109 Series
9 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
