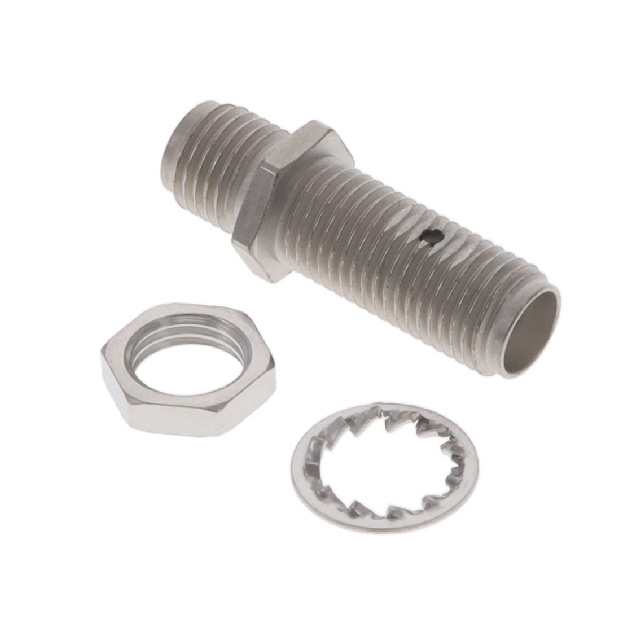

R124720000W
ActiveRadiall USA, Inc.
SMA / FEMALE-FEMALE BULKHEAD ADA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R124720000W
ActiveRadiall USA, Inc.
SMA / FEMALE-FEMALE BULKHEAD ADA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R124720000W |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Jack to Jack |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
R12472 Series
| Part | Style | Body Finish | Mounting Feature | Center Gender | Conversion Type | Convert From (Adapter End) | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Convert To (Adapter End) | Adapter Type | Adapter Series | Frequency - Max [Max] | Center Contact Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Straight | White Bronze | Bulkhead | Female to Female | Same Series | Female Socket SMA Jack | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Female Socket SMA Jack | Jack to Jack | SMA to SMA | 18 GHz | Beryllium Copper | 50 Ohms |
Radiall USA, Inc. | Straight | White Bronze | Bulkhead | Female to Female | Same Series | Female Socket SMA Jack | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Female Socket SMA Jack | Jack to Jack | SMA to SMA | 18 GHz | Beryllium Copper | 50 Ohms |
Radiall USA, Inc. | Straight | White Bronze | Bulkhead | Female to Female | Same Series | Female Socket SMA Jack | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Female Socket SMA Jack | Jack to Jack | SMA to SMA | 18 GHz | Beryllium Copper | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.45 | |
| 10 | $ 21.36 | |||
Description
General part information
R12472 Series
Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
