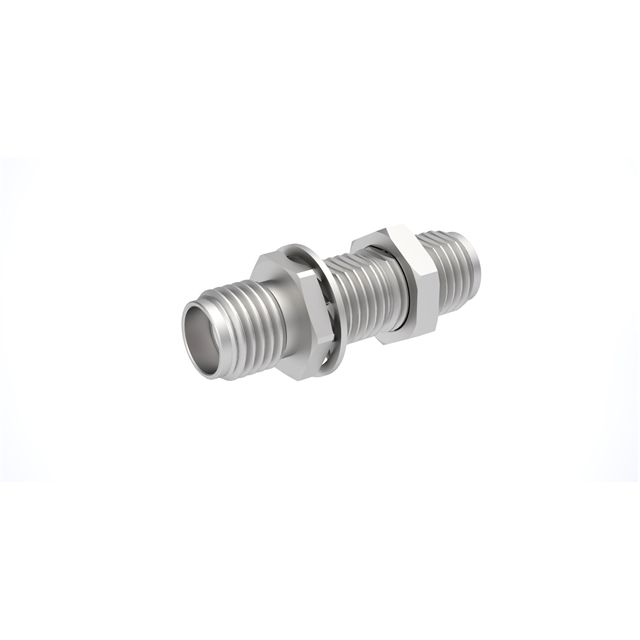

R124720000

Active

Radiall USA, Inc.

SMA / FEMALE-FEMALE BULKHEAD ADA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / FEMALE-FEMALE BULKHEAD ADA

Technical Specifications

Parameters and characteristics for this part

Specification	R124720000

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Style	Body Finish	Mounting Feature	Center Gender	Conversion Type	Convert From (Adapter End)	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Convert To (Adapter End)	Adapter Type	Adapter Series	Frequency - Max [Max]	Center Contact Material	Impedance
Radiall USA, Inc. R124720003	Straight	White Bronze	Bulkhead	Female to Female	Same Series	Female Socket SMA Jack	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Female Socket SMA Jack	Jack to Jack	SMA to SMA	18 GHz	Beryllium Copper	50 Ohms
Radiall USA, Inc. R124720000W	Straight	White Bronze	Bulkhead	Female to Female	Same Series	Female Socket SMA Jack	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Female Socket SMA Jack	Jack to Jack	SMA to SMA	18 GHz	Beryllium Copper	50 Ohms
Radiall USA, Inc. R124720000	Straight	White Bronze	Bulkhead	Female to Female	Same Series	Female Socket SMA Jack	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	Female Socket SMA Jack	Jack to Jack	SMA to SMA	18 GHz	Beryllium Copper	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 24.81

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
