178-037-613R571
ActiveMH Connectors

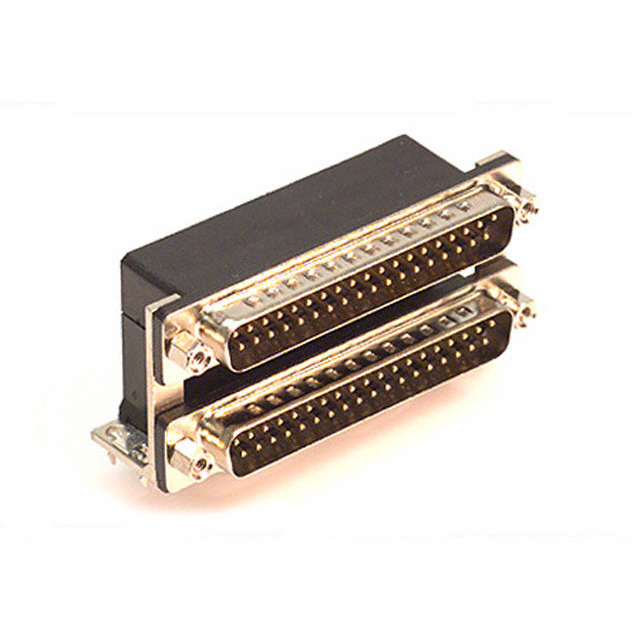

CONN D-SUB PLUG 37POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
178-037-613R571
ActiveMH Connectors
CONN D-SUB PLUG 37POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 178-037-613R571 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
178-037 Series
| Part | Dielectric Material | Contact Finish | Shell Material, Finish | Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Features | Current Rating (Amps) | Mounting Type | Contact Finish Thickness | Connector Style | Contact Type | Termination | Flange Feature | Number of Rows | Material Flammability Rating | Contact Form | Connector Type | Contact Material | Shell Size, Connector Layout | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Polyamide (PA9T) Nylon 9T | Gold | Nickel Plated Steel | Black | 105 ░C | -55 °C | 37 | Board Lock Grounding Indents Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Housing/Shell (4-40) | 2 | UL94 V-0 | Stamped | Plug Male Pins Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " |
MH Connectors | Polyamide (PA9T) Nylon 9T | Gold | Nickel Plated Steel | Black | 105 ░C | -55 °C | 37 | Board Lock Grounding Indents Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Housing/Shell (4-40) | 2 | UL94 V-0 | Stamped | Male Pins Plug | Brass | 4 | 8.08 mm | 0.318 " |
MH Connectors | Polyamide (PA9T) Nylon 9T | Gold | Nickel Plated Steel | Black | 105 ░C | -55 °C | 37 | Board Lock Grounding Indents Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Housing/Shell (4-40) | 2 | UL94 V-0 | Stamped | Plug Male Pins Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " |
MH Connectors | Polyester Glass Filled | Gold | Black | 105 ░C | -55 °C | 37 | Board Lock Grounding Indents Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Female Screwlock (4-40) Mating Side | 2 | UL94 V-0 | Stamped | Plug Male Pins Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " | |
MH Connectors | Polyamide (PA9T) Nylon 9T | Gold | Nickel Plated Steel | Black | 105 ░C | -55 °C | 37 | Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Female Screwlock (4-40) Mating Side | 2 | UL94 V-0 | Stamped | Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " |
MH Connectors | Polyester Glass Filled | Gold | Black | 105 ░C | -55 °C | 37 | Board Lock Grounding Indents Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Female Screwlock (4-40) Mating Side | 2 | UL94 V-0 | Stamped | Plug Male Pins Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " | |
MH Connectors | Polyester Glass Filled | Gold | Black | 105 ░C | -55 °C | 37 | Board Lock Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Female Screwlock (4-40) Mating Side | 2 | UL94 V-0 | Stamped | Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " | |
MH Connectors | Polyamide (PA9T) Nylon 9T | Gold | Nickel Plated Steel | Black | 105 ░C | -55 °C | 37 | Board Lock Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Housing/Shell (4-40) | 2 | UL94 V-0 | Stamped | Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " |
MH Connectors | Polyamide (PA9T) Nylon 9T | Gold | Nickel Plated Steel | Black | 105 ░C | -55 °C | 37 | Board Lock Grounding Indents Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Female Screwlock (4-40) Mating Side | 2 | UL94 V-0 | Stamped | Male Pins Plug | Brass | 4 | 8.08 mm | 0.318 " |
MH Connectors | Polyamide (PA9T) Nylon 9T | Gold | Nickel Plated Steel | Black | 105 ░C | -55 °C | 37 | Board Lock Grounding Indents Shielded | 5 A | Panel Mount Right Angle Through Hole | Flash | D-Sub - Stacked | Signal | Solder | Female Screwlock (4-40) Mating Side | 2 | UL94 V-0 | Stamped | Plug Male Pins Receptacle Female Sockets | Brass | 4 | 8.08 mm | 0.318 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.62 | |
| 10 | $ 18.21 | |||
| 25 | $ 16.48 | |||
| 40 | $ 15.68 | |||
| 80 | $ 14.59 | |||
| 230 | $ 13.13 | |||
| 440 | $ 12.33 | |||
Description
General part information
178-037 Series
37, 37 Position D-Sub - Stacked Plug, Male Pins Connector
