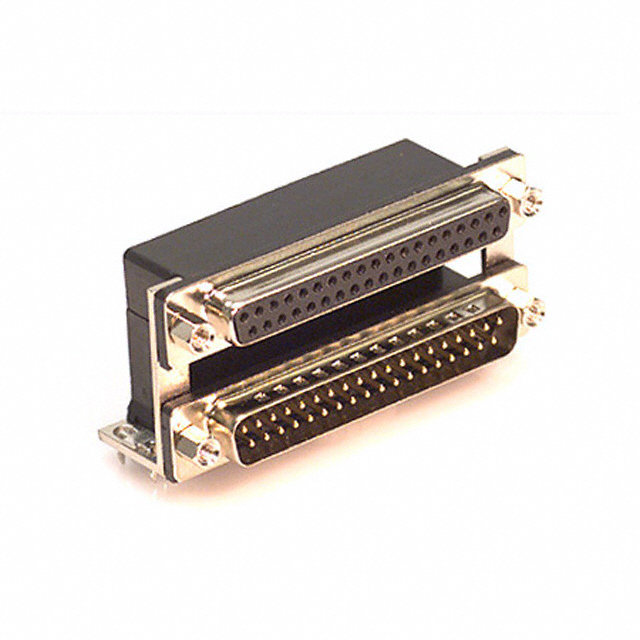

178-037-312-571

Obsolete

MH Connectors

CONN D-SUB PLUG/RCPT 37P RA SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

178-037-312-571

Obsolete

MH Connectors

CONN D-SUB PLUG/RCPT 37P RA SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	178-037-312-571

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Termination	Solder

178-037 Series

Part	Dielectric Material	Contact Finish	Shell Material, Finish	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Features	Current Rating (Amps)	Mounting Type	Contact Finish Thickness	Connector Style	Contact Type	Termination	Flange Feature	Number of Rows	Material Flammability Rating	Contact Form	Connector Type	Contact Material	Shell Size, Connector Layout	Backset Spacing	Backset Spacing
MH Connectors 178-037-413R691	Polyamide (PA9T) Nylon 9T	Gold	Nickel Plated Steel	Black	105 ░C	-55 °C	37	Board Lock Grounding Indents Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Housing/Shell (4-40)	2	UL94 V-0	Stamped	Plug Male Pins Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-613R491	Polyamide (PA9T) Nylon 9T	Gold	Nickel Plated Steel	Black	105 ░C	-55 °C	37	Board Lock Grounding Indents Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Housing/Shell (4-40)	2	UL94 V-0	Stamped	Male Pins Plug	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-313R491	Polyamide (PA9T) Nylon 9T	Gold	Nickel Plated Steel	Black	105 ░C	-55 °C	37	Board Lock Grounding Indents Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Housing/Shell (4-40)	2	UL94 V-0	Stamped	Plug Male Pins Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-312-571	Polyester Glass Filled	Gold		Black	105 ░C	-55 °C	37	Board Lock Grounding Indents Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Female Screwlock (4-40) Mating Side	2	UL94 V-0	Stamped	Plug Male Pins Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-513R481	Polyamide (PA9T) Nylon 9T	Gold	Nickel Plated Steel	Black	105 ░C	-55 °C	37	Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Female Screwlock (4-40) Mating Side	2	UL94 V-0	Stamped	Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-412-571	Polyester Glass Filled	Gold		Black	105 ░C	-55 °C	37	Board Lock Grounding Indents Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Female Screwlock (4-40) Mating Side	2	UL94 V-0	Stamped	Plug Male Pins Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-512-571	Polyester Glass Filled	Gold		Black	105 ░C	-55 °C	37	Board Lock Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Female Screwlock (4-40) Mating Side	2	UL94 V-0	Stamped	Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-513R691	Polyamide (PA9T) Nylon 9T	Gold	Nickel Plated Steel	Black	105 ░C	-55 °C	37	Board Lock Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Housing/Shell (4-40)	2	UL94 V-0	Stamped	Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-613R571	Polyamide (PA9T) Nylon 9T	Gold	Nickel Plated Steel	Black	105 ░C	-55 °C	37	Board Lock Grounding Indents Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Female Screwlock (4-40) Mating Side	2	UL94 V-0	Stamped	Male Pins Plug	Brass	4	8.08 mm	0.318 "
MH Connectors 178-037-313R671	Polyamide (PA9T) Nylon 9T	Gold	Nickel Plated Steel	Black	105 ░C	-55 °C	37	Board Lock Grounding Indents Shielded	5 A	Panel Mount Right Angle Through Hole	Flash	D-Sub - Stacked	Signal	Solder	Female Screwlock (4-40) Mating Side	2	UL94 V-0	Stamped	Plug Male Pins Receptacle Female Sockets	Brass	4	8.08 mm	0.318 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

178-037 Series

37, 37 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
