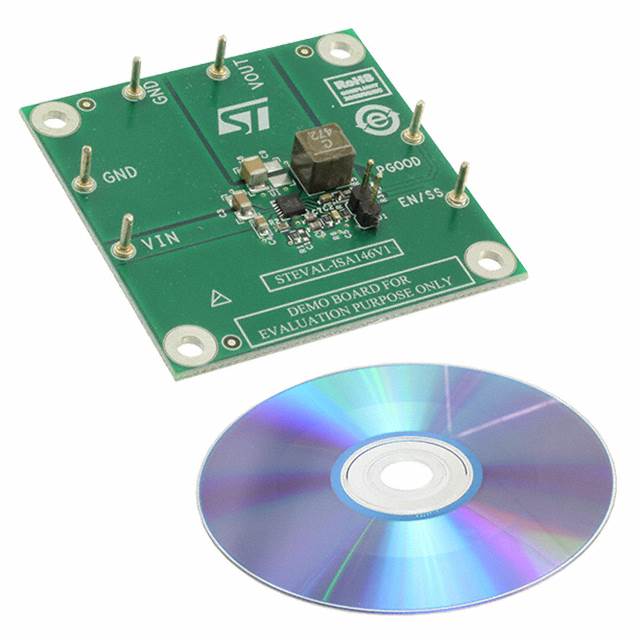

STEVAL-ISA146V1

Active

STMicroelectronics

4 A STEP-DOWN SWITCHING EVALUATION BOARD BASED ON THE ST1S50

Find alt

Alpha

STEVAL-ISA146V1

Active

STMicroelectronics

4 A STEP-DOWN SWITCHING EVALUATION BOARD BASED ON THE ST1S50

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

STEVAL Series

The STEVAL-BFA001V1B is an industrial reference design kit designed for condition monitoring (CM) and predictive maintenance (PdM).

The hardware development kit consists of an industrial sensor board (STEVAL-IDP005V1), an adapter for the ST-LINK/V2-1 programming and debugging tool (STEVAL-UKI001V1), a 0.050" 10-pin flat cable, a 4-pole cable mount connector plug with male contacts and an M12 female connector with a 2 m cable.

The firmware package includes dedicated algorithms for advanced time and frequency domain signal processing and analysis of the 3D digital accelerometer with 3 kHz flat bandwidth. The package includes drivers for pressure, relative humidity and temperature sensor monitoring. Audio algorithms for acoustic emission (AE) are also part of the package.

Technical Specifications

Parameters and characteristics for this part

Specification	STEVAL-ISA146V1

Board Type	Fully Populated
Contents	Board
Current - Output	4 A
Frequency - Switching	500 kHz
Main Purpose	DC/DC, Step Down
Non-Isolated Output Count	1 count
Output Type	Non-Isolated
Regulator Topology	Buck
Supplied Contents	Board(s)
Total Output Count	1
Utilized IC / Part	ST1S50
Voltage - Input (Maximum)	18 V
Voltage - Input (Minimum)	4 V
