165X11279X

Active

Amphenol CONEC

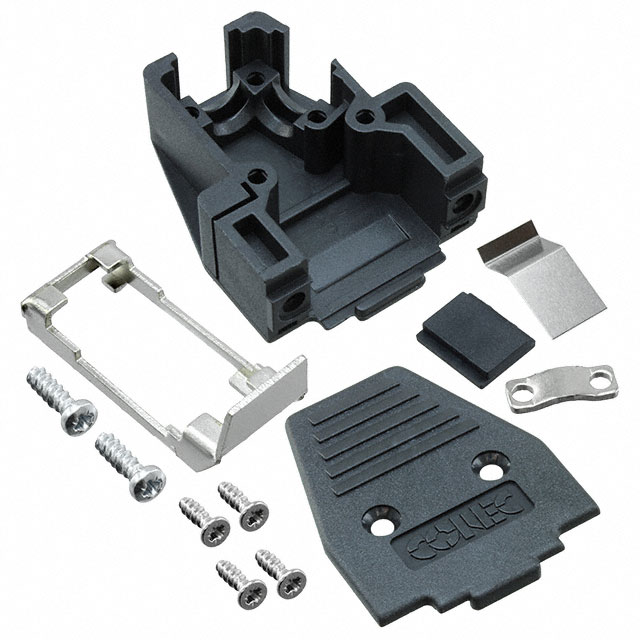

CONN BACKSHELL 9P 45/180DEG BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X11279X

Active

Amphenol CONEC

CONN BACKSHELL 9P 45/180DEG BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X11279X

Accessory Type	Two Piece Backshell
Cable Exit	180 °, 45 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Slide Lock, Spring
Hardware	Assembly Hardware, Strain Relief
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	9
Primary Material	Plastic
Shielding	Unshielded

165X112 Series

Part	Features	Cable Type	Hardware	Primary Material	Accessory Type	Compatible D-Sub Size	Number of Positions	Cable Exit	Color	Material	Shielding	Compatible Shell Size
Amphenol CONEC 165X11249X	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	15pos HD26pos	15	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	A
Amphenol CONEC 165X11299XE	Slide Lock Spring	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	25pos HD44pos		45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	B
Amphenol CONEC 165X11299X	Slide Lock	Round	Assembly Hardware	Plastic	Two Piece Backshell	25pos HD44pos		45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	B
Amphenol CONEC 165X11279X	Slide Lock Spring	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	9pos HD15pos	9	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	E
Amphenol CONEC 165X11269XE	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	37pos HD62pos	37	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	C
Amphenol CONEC 165X11259X	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	25pos HD44pos		45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	B
Amphenol CONEC 165X11249XE	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	15pos HD26pos	15	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	A
Amphenol CONEC 165X11289X	IP20 Slide Lock Spring	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	15pos HD26pos	15	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.41
		10	$ 8.84
		25	$ 8.29
		50	$ 7.89
		100	$ 7.52
		250	$ 7.05
		500	$ 6.71
		1000	$ 6.39

Description

General part information

165X112 Series

9 Position Two Piece Backshell Connector Black 45°, 180° Unshielded

Documents

Technical documentation and resources
