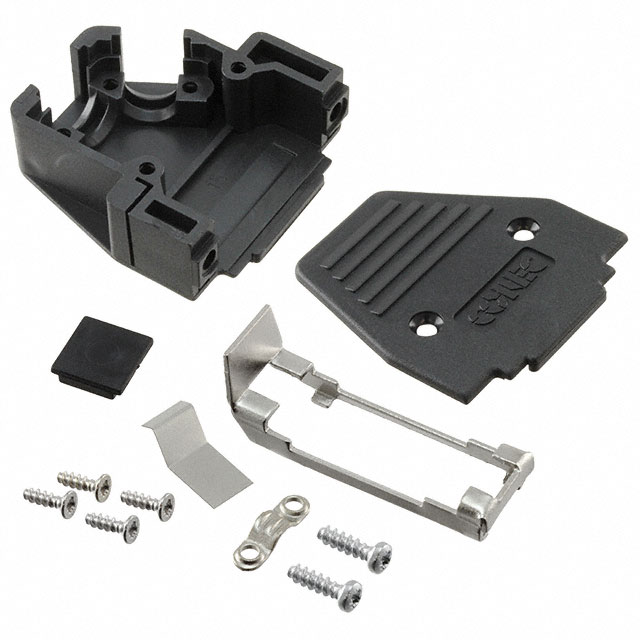

165X11289X

Active

Amphenol CONEC

15 POS HOOD C/W SLIDE LOCK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

165X11289X

Active

Amphenol CONEC

15 POS HOOD C/W SLIDE LOCK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	165X11289X

Accessory Type	Two Piece Backshell
Cable Exit	180 °, 45 °
Cable Type	Round
Color	Black
Compatible D-Sub Size	15pos, HD26pos
Compatible Shell Size	A
Features	Spring, IP20, Slide Lock
Hardware	Assembly Hardware, Strain Relief
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	15
Primary Material	Plastic
Shielding	Unshielded

165X112 Series

Part	Features	Cable Type	Hardware	Primary Material	Accessory Type	Compatible D-Sub Size	Number of Positions	Cable Exit	Color	Material	Shielding	Compatible Shell Size
Amphenol CONEC 165X11249X	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	15pos HD26pos	15	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	A
Amphenol CONEC 165X11299XE	Slide Lock Spring	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	25pos HD44pos		45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	B
Amphenol CONEC 165X11299X	Slide Lock	Round	Assembly Hardware	Plastic	Two Piece Backshell	25pos HD44pos		45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	B
Amphenol CONEC 165X11279X	Slide Lock Spring	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	9pos HD15pos	9	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	E
Amphenol CONEC 165X11269XE	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	37pos HD62pos	37	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	C
Amphenol CONEC 165X11259X	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	25pos HD44pos		45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	B
Amphenol CONEC 165X11249XE	Mating Screws 4-40	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	15pos HD26pos	15	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	A
Amphenol CONEC 165X11289X	IP20 Slide Lock Spring	Round	Assembly Hardware Strain Relief	Plastic	Two Piece Backshell	15pos HD26pos	15	45 ° 180 °	Black	Acrylonitrile Butadiene Styrene (ABS)	Unshielded	A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.96
		10	$ 9.87
		25	$ 9.30
		50	$ 9.06
		100	$ 8.82
		250	$ 7.87
		500	$ 7.39
		1000	$ 6.53

Description

General part information

165X112 Series

15 Position Two Piece Backshell Connector Black 45°, 180° Unshielded

Documents

Technical documentation and resources
