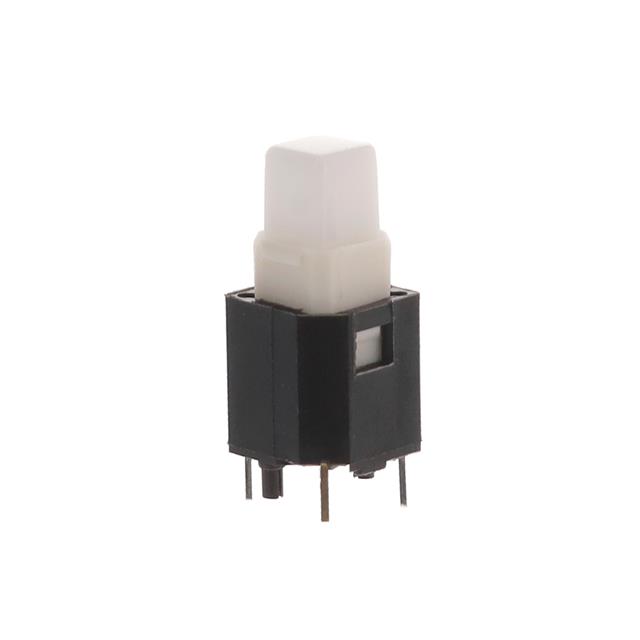

Specification	LP2S1WHTWHT-N

Actuator Marking	No Marking
Actuator Type	Square, Button
Circuit	SPST-NO
Color	White
Color - Actuator/Cap	White
Current Rating	1 mA
Illumination Type	LED
Illumination Voltage (Nominal)	3.5 VDC
Mechanical Life (Cycles)	300000 Cycles
Mounting Type	Through Hole
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Standard, Illuminated
Voltage Rating - DC	20 V

LP2S1 Series

Part	Mechanical Life (Cycles)	Color - Actuator/Cap	Illumination Voltage (Nominal)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Color	Illumination Type	Voltage Rating - DC	Termination Style	Type	Switch Function	Actuator Type	Actuator Marking	Circuit
E-Switch LP2S1WHTRED-N	300000 Cycles	White	1.5 VDC	Through Hole	70 °C	-20 °C	1 mA	Red	LED	20 V	PC Pin	Illuminated Standard	Off-Mom	Button Square	No Marking	SPST-NO
E-Switch LP2S1TRRED-N	300000 Cycles	Red	1.5 VDC	Through Hole	70 °C	-20 °C	1 mA	Red	LED	20 V	PC Pin	Illuminated Standard	Off-Mom	Button Square	No Marking	SPST-NO
E-Switch LP2S1WHTWHT-N	300000 Cycles	White	3.5 VDC	Through Hole	70 °C	-20 °C	1 mA	White	LED	20 V	PC Pin	Illuminated Standard	Off-Mom	Button Square	No Marking	SPST-NO
E-Switch LP2S1WHTBLU-N	300000 Cycles	White	3.5 VDC	Through Hole	70 °C	-20 °C	1 mA	Blue	LED	20 V	PC Pin	Illuminated Standard	Off-Mom	Button Square	No Marking	SPST-NO
E-Switch LP2S1BLKN-N	300000 Cycles	Black		Through Hole	70 °C	-20 °C	1 mA			20 V	PC Pin	Standard	Off-Mom	Button Square	No Marking	SPST-NO
