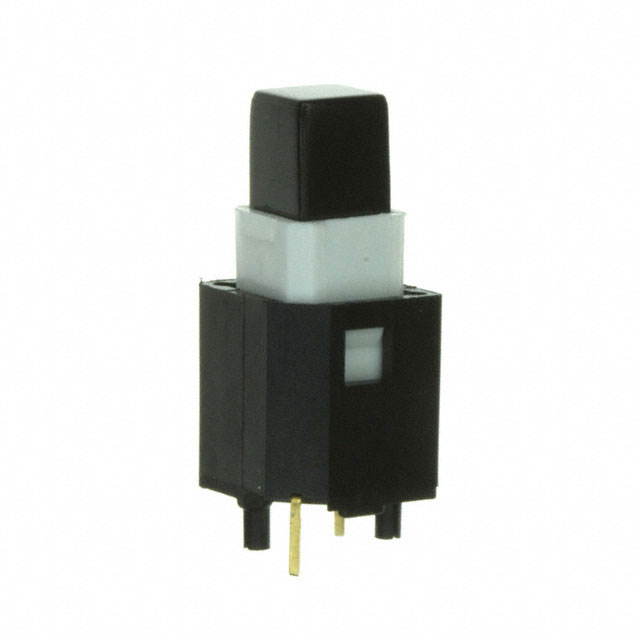

LP2S1BLKN-N

Active

E-Switch

SWITCH PUSH SPST-NO 1MA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH SPST-NO 1MA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Illumination Voltage (Nominal)	Illumination Type, Color	Color - Actuator/Cap	Actuator Marking	Actuator Type	Mechanical Life	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Current Rating (Amps)	Termination Style	Switch Function	Circuit
E-Switch LP2S1WHTRED-N	1.5 VDC	LED Red	White	No Marking	Button Square	300000 Cycles	20 V	-20 C	70 °C	Illuminated Standard	Through Hole	1 mA	PC Pin	Off-Mom	SPST-NO
E-Switch LP2S1TRRED-N	1.5 VDC	LED Red	Red	No Marking	Button Square	300000 Cycles	20 V	-20 C	70 °C	Illuminated Standard	Through Hole	1 mA	PC Pin	Off-Mom	SPST-NO
E-Switch LP2S1WHTWHT-N	3.5 VDC	LED White	White	No Marking	Button Square	300000 Cycles	20 V	-20 C	70 °C	Illuminated Standard	Through Hole	1 mA	PC Pin	Off-Mom	SPST-NO
E-Switch LP2S1WHTBLU-N	3.5 VDC	Blue LED	White	No Marking	Button Square	300000 Cycles	20 V	-20 C	70 °C	Illuminated Standard	Through Hole	1 mA	PC Pin	Off-Mom	SPST-NO
E-Switch LP2S1BLKN-N			Black	No Marking	Button Square	300000 Cycles	20 V	-20 C	70 °C	Standard	Through Hole	1 mA	PC Pin	Off-Mom	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.80

General part information

Pushbutton Switch SPST-NO Standard Through Hole

Technical documentation and resources

No documents available
