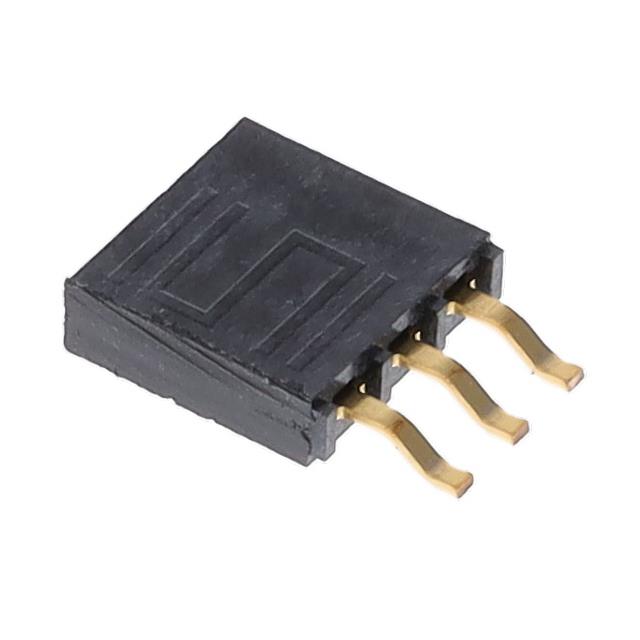

SMH-103-02-G-S
ActiveSamtec Inc.
CONN RCPT 3POS 0.1 GOLD SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
SMH-103-02-G-S
ActiveSamtec Inc.
CONN RCPT 3POS 0.1 GOLD SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMH-103-02-G-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.095 in |
| Insulation Height [z] | 2.41 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.90 | |
| 50 | $ 1.47 | |||
| 100 | $ 1.19 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.95 | |||
Description
General part information
SMH-103 Series
3 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
