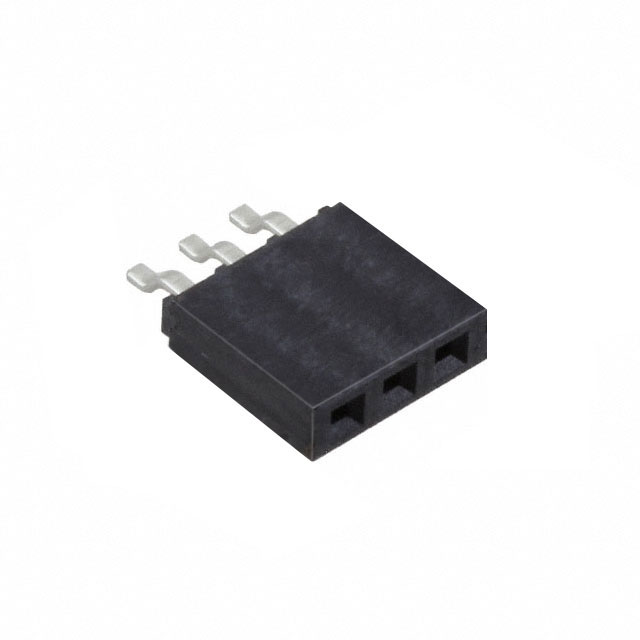

Specification	SMH-103-02-T-S-TR

Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.095 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Style	Board
Termination	Solder

SMH Series

Headers & Wire Housings .100" Horizontal Surface Mount Socket Strip

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Contact Finish - Post	Mounting Type	Pitch - Mating	Contact Finish - Mating	Number of Positions Loaded	Insulation Height	Number of Positions	Style	Row Spacing - Mating	Connector Type	Contact Type	Insulation Color	Termination	Material Flammability Rating	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
Samtec Inc. SMH-110-02-F-D-TR	125 °C	-55 °C	Flash	2	Push-Pull	Tin	Right Angle Surface Mount	0.1 in	Gold	All	0.195 in	20	Board	0.1 in	Receptacle	Forked	Black	Solder	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)
Samtec Inc. SMH-110-02-G-S	125 °C	-55 °C		1	Push-Pull	Gold	Right Angle Surface Mount	0.1 in	Gold	All	0.095 in	10	Board		Receptacle	Forked	Black	Solder	UL94 V-0	Square	Phosphor Bronze	Liquid Crystal Polymer (LCP)	20 Ąin	Flash	Flash
