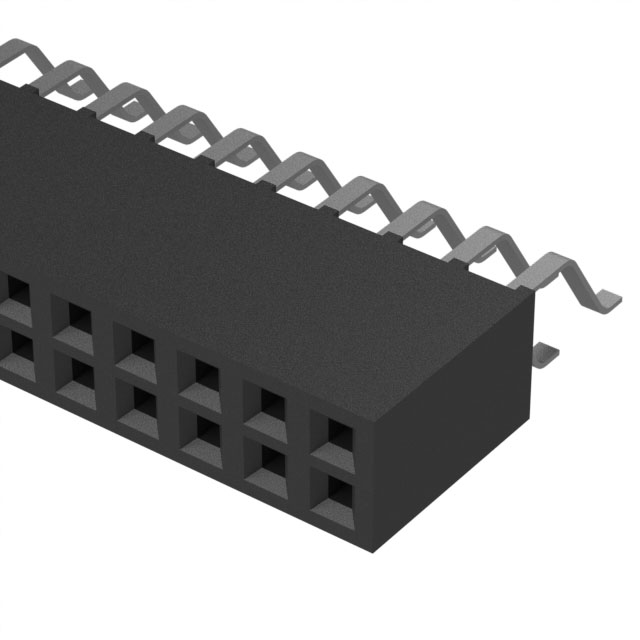

SMH-110-02-F-D-TR

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Search across all available documentation for this part.

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-110-02-F-D-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Contact Finish Thickness - Mating	Contact Material	Material Flammability Rating	Number of Positions	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Mating	Number of Rows	Termination	Mounting Type	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SMH-110-02-F-D-TR	Flash	Phosphor Bronze	UL94 V-0	20	Black	0.195 in	4.95 mm	Tin	Push-Pull	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Gold	2	Solder	Surface Mount Right Angle	Forked	Receptacle	-55 °C	125 °C	All	2.54 mm	0.1 in	Square
Samtec Inc. SMH-110-02-L-D		Phosphor Bronze	UL94 V-0	20	Black	0.195 in	4.95 mm	Tin	Push-Pull	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Gold	2	Solder	Surface Mount Right Angle	Forked	Receptacle	-55 °C	125 °C	All	2.54 mm	0.1 in	Square	10 çin	0.25 çm
Samtec Inc. SMH-110-02-T-S		Phosphor Bronze	UL94 V-0	10	Black			Tin	Push-Pull	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)		1	Solder	Surface Mount Right Angle	Forked	Receptacle	-55 °C	105 ░C	All			Square			0.095 in	2.41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	325	$ 3.12

General part information

20 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
