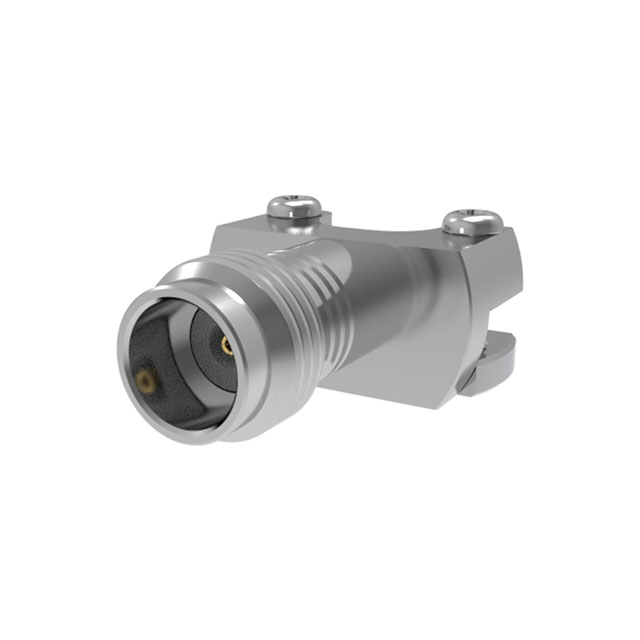

TMB-E8F2-1L1

Active

CarlisleIT

1.85(F)2-H,EL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

1.85(F)2-H,EL,FIELDREP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMB-E8F2-1L1	TMB-E8 Series

Body Finish	-	Gold, White Bronze
Body Material	Stainless Steel	Brass, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	1.85 mm	1.85 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Compression	Solder, Compression
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Features	Field Replaceable, For Hermetically Sealed Pin	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	65 GHz	65 - 67 GHz
Housing Color	Silver	Gold, Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.2 dB	0.2 - 0.6 dB
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 ░C
Shield Termination	Screw	Solder, Screw
Voltage Rating	400 V	400 V

1.85(F)STR,EL,SOLDER

Part	Center Contact Plating	Connector Type	Mating Cycles	Body Material	Voltage Rating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Style	Frequency - Max [Max]	Body Finish	Impedance	Number of Ports	Center Contact Material	Insertion Loss	Mounting Type	Shield Termination	Features	Dielectric Material
CarlisleIT TMB-E8FS-1S1	Gold	Female Socket, Jack	500	Brass	400 V	Solder	-65 ░C	165 °C	Gold	1.85 mm	65 GHz	Gold	50 Ohms	1	Beryllium Copper	0.6 dB	Board Edge, End Launch	Solder
CarlisleIT TMB-E8FS-1S1	Gold	Female Socket, Jack	500	Brass	400 V	Solder	-65 ░C	165 °C	Gold	1.85 mm	65 GHz	Gold	50 Ohms	1	Beryllium Copper	0.6 dB	Board Edge, End Launch	Solder
CarlisleIT TMB-E8F2-1L1	Gold	Female Socket, Jack	500	Stainless Steel	400 V	Compression	-65 ░C	165 °C	Silver	1.85 mm	65 GHz		50 Ohms	1	Beryllium Copper	0.2 dB	Board Edge, End Launch	Screw	Field Replaceable, For Hermetically Sealed Pin
CarlisleIT TMB-E8FS-1ST		Female Socket, Jack	500	Brass	400 V	Solder	-55 °C	85 °C	Silver	1.85 mm	67 GHz	White Bronze	50 Ohms	1	Beryllium Copper	0.49 dB	Board Edge, End Launch	Solder		Polytetrafluoroethylene (PTFE)
