TMB-E8FS-1S1

Active

CarlisleIT

1.85(F)STR,EL,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

1.85(F)STR,EL,SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

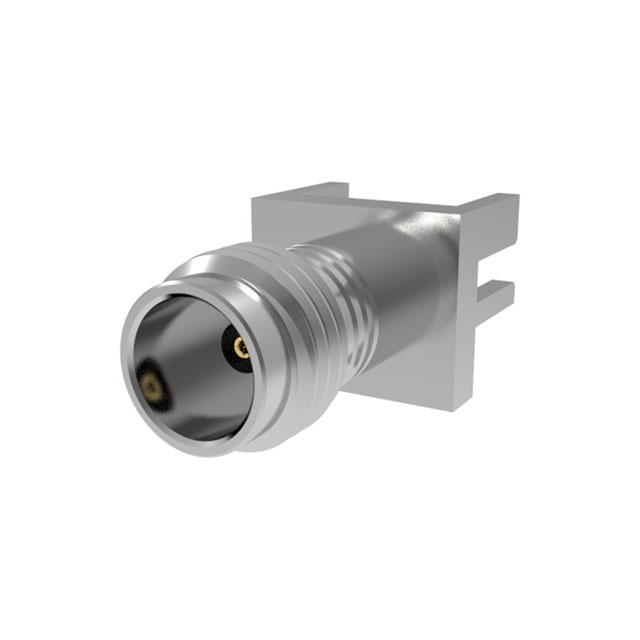

1.85mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TMB-E8FS-1S1	TMB-E8 Series

Body Finish	Gold	Gold, White Bronze
Body Material	Brass	Brass, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	1.85 mm	1.85 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder, Compression
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Features	-	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	65 GHz	65 - 67 GHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.6 dB	0.2 - 0.6 dB
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -55 ░C
Shield Termination	Solder	Solder, Screw
Voltage Rating	400 V	400 V

1.85(F)STR,EL,SOLDER

Part	Center Contact Plating	Connector Type	Mating Cycles	Body Material	Voltage Rating	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Style	Frequency - Max [Max]	Body Finish	Impedance	Number of Ports	Center Contact Material	Insertion Loss	Mounting Type	Shield Termination	Features	Dielectric Material
CarlisleIT TMB-E8FS-1S1	Gold	Female Socket, Jack	500	Brass	400 V	Solder	-65 ░C	165 °C	Gold	1.85 mm	65 GHz	Gold	50 Ohms	1	Beryllium Copper	0.6 dB	Board Edge, End Launch	Solder
CarlisleIT TMB-E8FS-1S1	Gold	Female Socket, Jack	500	Brass	400 V	Solder	-65 ░C	165 °C	Gold	1.85 mm	65 GHz	Gold	50 Ohms	1	Beryllium Copper	0.6 dB	Board Edge, End Launch	Solder
CarlisleIT TMB-E8F2-1L1	Gold	Female Socket, Jack	500	Stainless Steel	400 V	Compression	-65 ░C	165 °C	Silver	1.85 mm	65 GHz		50 Ohms	1	Beryllium Copper	0.2 dB	Board Edge, End Launch	Screw	Field Replaceable, For Hermetically Sealed Pin
CarlisleIT TMB-E8FS-1ST		Female Socket, Jack	500	Brass	400 V	Solder	-55 °C	85 °C	Silver	1.85 mm	67 GHz	White Bronze	50 Ohms	1	Beryllium Copper	0.49 dB	Board Edge, End Launch	Solder		Polytetrafluoroethylene (PTFE)
