G88MPB03002C1EU

Active

Amphenol ICC (Commercial Products)

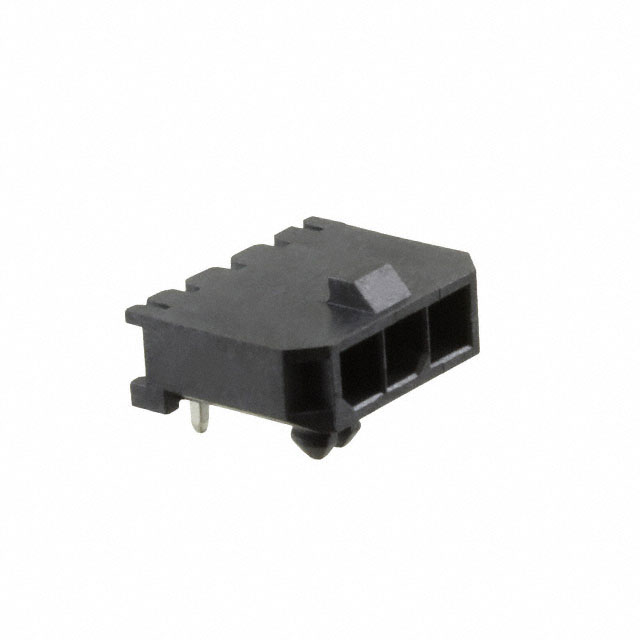

CONN HEADER R/A 3POS 3MM

G88MPB03002C1EU

Active

Amphenol ICC (Commercial Products)

CONN HEADER R/A 3POS 3MM

Description Specifications Series Pricing CAD Documents

Description

General part information

G88MP Series

Connector Header Through Hole, Right Angle 3 position 0.118" (3.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	G88MPB03002C1EU

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.083 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	0.172 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	3
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

G88MP Series

Part	Style	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Contact Shape	Features	Connector Type	Insulation Height	Contact Type	Number of Positions Loaded	Current Rating	Insulation Material	Insulation Color	Contact Length - Post	Mounting Type	Voltage Rating	Fastening Type	Termination	Contact Finish - Post	Row Spacing - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Material	Number of Positions	Number of Rows	Shrouding	Contact Finish Thickness - Post
Amphenol ICC (Commercial Products) G88MP04102CEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Guide Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.083 in	Through Hole	250 V	Locking Ramp	Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	4	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP18102CEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Guide Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.083 in	Through Hole	250 V	Locking Ramp	Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	18	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP06102CEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Guide Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.083 in	Through Hole	250 V	Locking Ramp	Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	6	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP08102KEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.126 in	Through Hole	250 V	Locking Ramp	Kinked Pin Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	8	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP20102KEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.126 in	Through Hole	250 V	Locking Ramp	Kinked Pin Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	20	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP16102CEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Guide Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.083 in	Through Hole	250 V	Locking Ramp	Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	16	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MPB03002C1EU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Lock	Header	0.172 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.083 in	Right Angle Through Hole	250 V	Locking Ramp	Solder	Tin		100 µin	UL94 V-0	Copper Alloy	3	1	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP22102KEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.126 in	Through Hole	250 V	Locking Ramp	Kinked Pin Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	22	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP06102KEU	Board Cable/Wire	0.118 in	-40 °C	105 °C	Tin	Square	Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.126 in	Through Hole	250 V	Locking Ramp	Kinked Pin Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	6	2	Shrouded - 4 Wall	100 Ąin
Amphenol ICC (Commercial Products) G88MP02102KEU	Board Cable/Wire		-40 °C	105 °C	Tin	Square	Board Lock	Header	0.39 in	Male Pin	All	Varies by Wire Gauge	Liquid Crystal Polymer (LCP)	Black	0.126 in	Through Hole	250 V	Locking Ramp	Kinked Pin Solder	Tin	0.118 in	100 µin	UL94 V-0	Copper Alloy	2	2	Shrouded - 4 Wall	100 Ąin
