G88MP18102CEU

Active

Amphenol ICC (Commercial Products)

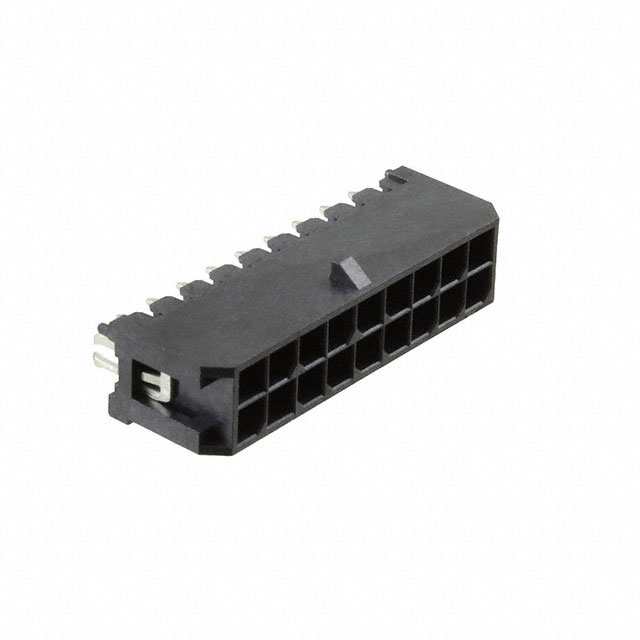

CONN HEADER VERT 18POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

G88MP18102CEU

Active

Amphenol ICC (Commercial Products)

CONN HEADER VERT 18POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G88MP18102CEU

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.083 in
Contact Length - Post	2.11 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide, Board Lock
Insulation Color	Black
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

G88MP Series

Part	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Style	Contact Finish - Post	Current Rating (Amps)	Contact Material	Number of Positions	Connector Type	Fastening Type	Insulation Color	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Number of Rows	Contact Shape	Contact Type	Voltage Rating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Post [x]	Insulation Height	Insulation Height
Amphenol ICC (Commercial Products) G88MP04102CEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	4	Header	Locking Ramp	Black	Board Guide Board Lock	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm	0.083 in	2.11 mm	All
Amphenol ICC (Commercial Products) G88MP18102CEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	18	Header	Locking Ramp	Black	Board Guide Board Lock	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm	0.083 in	2.11 mm	All
Amphenol ICC (Commercial Products) G88MP06102CEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	6	Header	Locking Ramp	Black	Board Guide Board Lock	2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm	0.083 in	2.11 mm	All
Amphenol ICC (Commercial Products) G88MP08102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	8	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MP20102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	20	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MPB03002C1EU			-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole Right Angle	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy		Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	1	Square	Male Pin	250 VDC	UL94 V-0			0.118 in	3 mm	0.083 in	2.11 mm	All		4.37 mm	0.172 "
Amphenol ICC (Commercial Products) G88MP22102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	22 positions	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MP06102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	6	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in	0.118 in	3 mm		3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MP02102KEU	9.91 mm	0.39 in	-40 °C	105 ░C	Shrouded - 4 Wall	Kinked Pin Solder	2.54 çm	100 çin	Through Hole	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	2	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	2	Square	Male Pin	250 VDC	UL94 V-0	3 mm	0.118 in				3.2 mm	All	0.126 in
Amphenol ICC (Commercial Products) G88MPB11002C1EU			-40 °C	105 ░C	Shrouded - 4 Wall	Solder	2.54 çm	100 çin	Through Hole Right Angle	Board to Cable/Wire	Tin	Varies by Wire Gauge	Copper Alloy	11	Header	Locking Ramp	Black		2.54 µm	100 µin	Liquid Crystal Polymer (LCP)	1	Square	Male Pin	250 VDC	UL94 V-0			0.118 in	3 mm	0.083 in	2.11 mm	All		4.37 mm	0.172 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	6480	$ 0.68

Description

General part information

G88MP Series

Connector Header Through Hole 18 position 0.118" (3.00mm)
