L77DE09SF179A

Active

Amphenol ICC (Commercial Products)

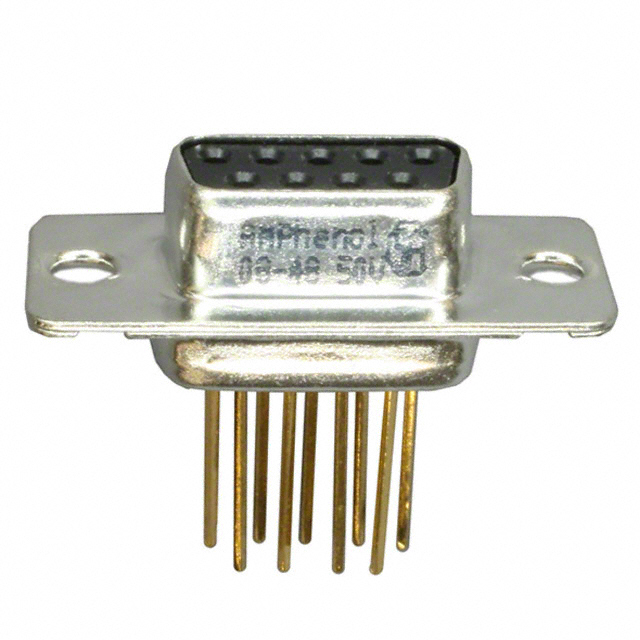

CONN D-SUB RCPT 9POS PNL MNT WW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77DE09SF179A

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS PNL MNT WW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77DE09SF179A

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Wire Wrap
Voltage Rating	300 VDC

L77DE09 Series

Part	Number of Positions	Voltage Rating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Flange Feature	Dielectric Material	Number of Rows	Contact Type	Current Rating (Amps)	Connector Style	Contact Material	Features	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L77DE09SAJ4VF2	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L77DE09S1APN	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DE09ST	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09STA113	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09S1AMNVF	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DE09SOL2R063	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09SA	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L77DE09SF179A	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Panel Mount Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Wire Wrap	DE E	1
Amphenol ICC (Commercial Products) L77DE09SOL2VF	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09STR126	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.76
		10	$ 7.89
		25	$ 7.43
		50	$ 7.24
		100	$ 7.05
		250	$ 6.29
		500	$ 5.91
		1000	$ 5.22

Description

General part information

L77DE09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
