L77DE09ST

Active

Amphenol ICC (Commercial Products)

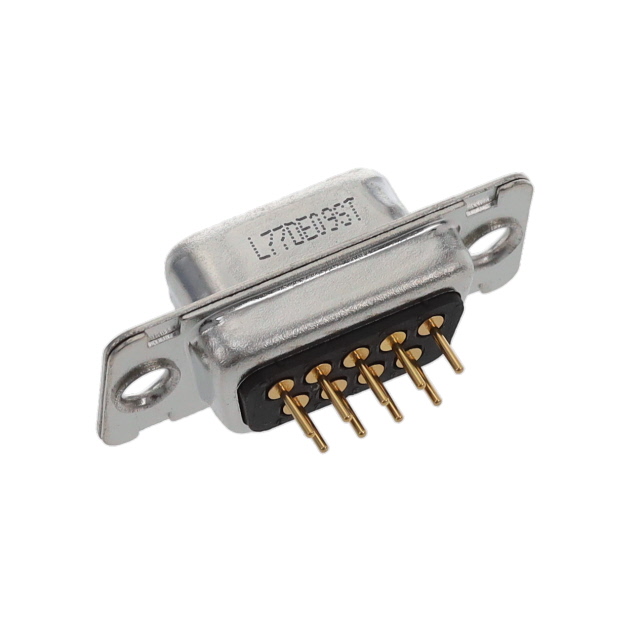

CONN D-SUB RCPT 9POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77DE09ST

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77DE09ST

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	300 VDC

L77DE09 Series

Part	Number of Positions	Voltage Rating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Flange Feature	Dielectric Material	Number of Rows	Contact Type	Current Rating (Amps)	Connector Style	Contact Material	Features	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L77DE09SAJ4VF2	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L77DE09S1APN	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DE09ST	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09STA113	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09S1AMNVF	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77DE09SOL2R063	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09SA	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole Right Angle	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass	Mounting Brackets	Solder	DE E	1	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L77DE09SF179A	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Panel Mount Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Wire Wrap	DE E	1
Amphenol ICC (Commercial Products) L77DE09SOL2VF	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1
Amphenol ICC (Commercial Products) L77DE09STR126	9	300 VDC	Gold	8 çin	0.203 çm	UL94 V-0	Through Hole	Black	-55 °C	125 °C	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Thermoplastic Glass Filled	2	Signal	7.5 A	D-Sub	Brass		Solder	DE E	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.45
		10	$ 4.92
		25	$ 4.65
		50	$ 4.54
		100	$ 4.31
		250	$ 4.00

Description

General part information

L77DE09 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
