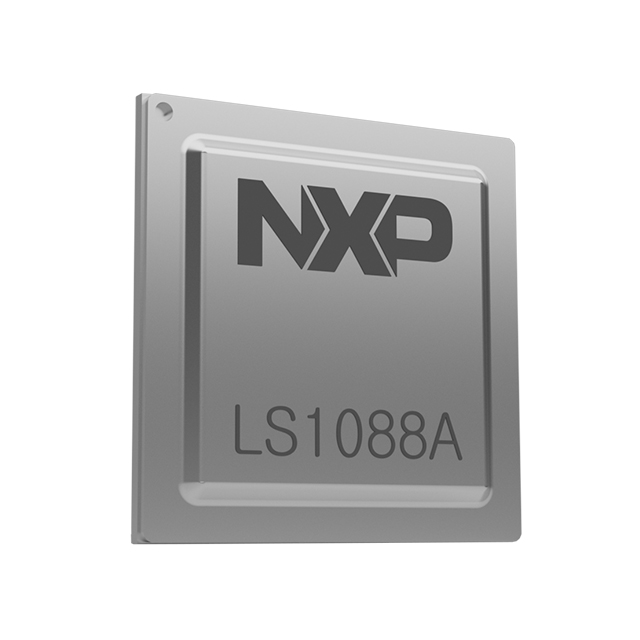

LS1088ASN7PTA
ActiveNXP USA Inc.
IC MPU QORIQ 1.4GHZ 780FBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS1088ASN7PTA
ActiveNXP USA Inc.
IC MPU QORIQ 1.4GHZ 780FBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LS1088ASN7PTA | LS1088 Series |
|---|---|---|
| Board Type | - | Evaluation Platform |
| Contents | - | Board(s) |
| Core Processor | ARM® Cortex®-A53 | ARM® Cortex®-A53 |
| Ethernet | 10GbE (2), 1GbE (8) | 10GbE (2), 1GbE (8) |
| Mounting Type | Surface Mount | Surface Mount, Fixed |
| Number of Cores/Bus Width [custom] | 64 Bit | 64 Bit |
| Number of Cores/Bus Width [custom] | 8 Core | 8 Core |
| Operating System | - | Linux |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| RAM Controllers | DDR4 | DDR4 |
| SATA | SATA 6Gbps (1) | SATA 6Gbps (1) |
| Security Features | Secure Boot, TrustZone® | Secure Boot, TrustZone® |
| Speed | 1.4 GHz | 1.2 - 1.6 GHz |
| Supplier Device Package | 780-FBGA (23x23) | 780-FBGA (23x23) |
| Type | - | MPU |
| USB | USB 3.0 (2) + PHY | USB 3.0 (2) + PHY |
| Utilized IC / Part | - | LS1088A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 60 | $ 143.00 | |
LS1088 Series
IC MPU QORIQ 1.4GHZ 780FBGA
| Part | Speed | SATA | Number of Cores/Bus Width [custom] | Number of Cores/Bus Width [custom] | RAM Controllers | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Security Features | Ethernet | Supplier Device Package | USB | Core Processor | Type | Operating System | Contents | Board Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NXP USA Inc. LS1088ASE7PTA | 1.4 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088AXE7PTA | 1.4 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | -40 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASN7PTA | 1.4 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088AXE7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | -40 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASN7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASN7MQA | 1.2 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASE7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASE7MQA | 1.2 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ARDB-PB | Fixed | ARM® Cortex®-A53 | MPU | Linux | Board(s) | Evaluation Platform | LS1088A | |||||||||||
NXP USA Inc. LS1088AXN7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | -40 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 |
Description
General part information
LS1088 Series
ARM® Cortex®-A53 Microprocessor IC QorIQ® Layerscape 8 Core, 64-Bit 1.4GHz 780-FBGA (23x23)
