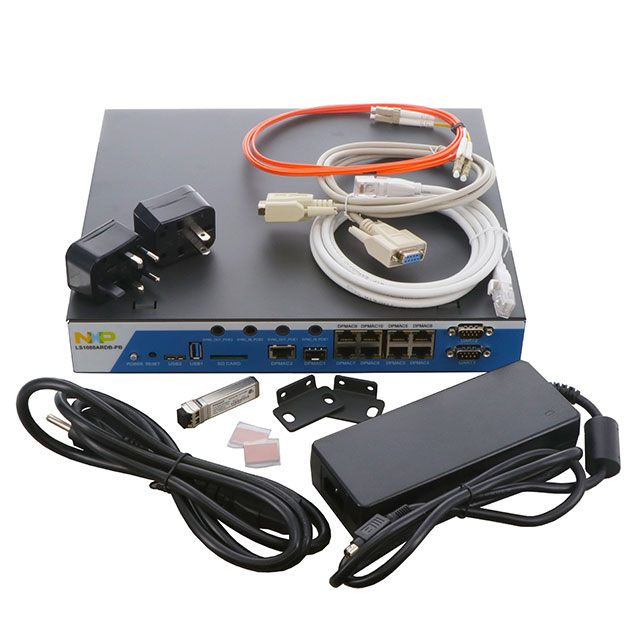

LS1088ARDB-PB
ActiveNXP USA Inc.
LS1088A EVAL BRD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS1088ARDB-PB
ActiveNXP USA Inc.
LS1088A EVAL BRD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LS1088ARDB-PB | LS1088 Series |
|---|---|---|
| Board Type | Evaluation Platform | Evaluation Platform |
| Contents | Board(s) | Board(s) |
| Core Processor | ARM® Cortex®-A53 | ARM® Cortex®-A53 |
| Ethernet | - | 10GbE (2), 1GbE (8) |
| Mounting Type | Fixed | Surface Mount, Fixed |
| Number of Cores/Bus Width | - | 64 Bit |
| Number of Cores/Bus Width | - | 8 Core |
| Operating System | Linux | Linux |
| Operating Temperature | - | -40 - 0 °C |
| Operating Temperature | - | 105 ░C |
| RAM Controllers | - | DDR4 |
| SATA | - | SATA 6Gbps (1) |
| Security Features | - | Secure Boot, TrustZone® |
| Speed | - | 1.2 - 1.6 GHz |
| Supplier Device Package | - | 780-FBGA (23x23) |
| Type | MPU | MPU |
| USB | - | USB 3.0 (2) + PHY |
| Utilized IC / Part | LS1088A | LS1088A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 2634.24 | |
LS1088 Series
IC MPU QORIQ 1.4GHZ 780FBGA
| Part | Speed | SATA | Number of Cores/Bus Width [custom] | Number of Cores/Bus Width [custom] | RAM Controllers | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Security Features | Ethernet | Supplier Device Package | USB | Core Processor | Type | Operating System | Contents | Board Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NXP USA Inc. LS1088ASE7PTA | 1.4 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088AXE7PTA | 1.4 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | -40 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASN7PTA | 1.4 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088AXE7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | -40 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASN7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASN7MQA | 1.2 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASE7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ASE7MQA | 1.2 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | 0 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 | |||||
NXP USA Inc. LS1088ARDB-PB | Fixed | ARM® Cortex®-A53 | MPU | Linux | Board(s) | Evaluation Platform | LS1088A | |||||||||||
NXP USA Inc. LS1088AXN7Q1A | 1.6 GHz | SATA 6Gbps (1) | 64 Bit | 8 Core | DDR4 | -40 °C | 105 ░C | Surface Mount | Secure Boot, TrustZone® | 10GbE (2), 1GbE (8) | 780-FBGA (23x23) | USB 3.0 (2) + PHY | ARM® Cortex®-A53 |
Description
General part information
LS1088 Series
LS1088A QorIQ® ARM® Cortex®-A53 MPU Embedded Evaluation Board
