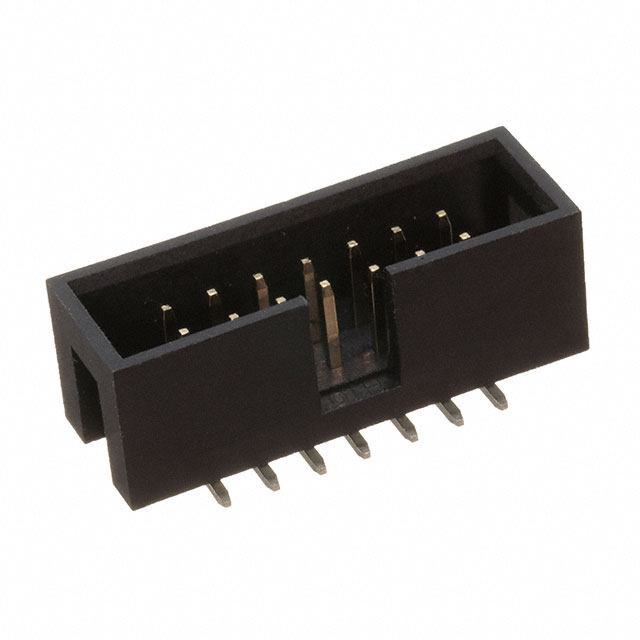

BHR-14-VSG-SMT

Active

Adam Tech

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

BHR-14-VSG-SMT

Active

Adam Tech

CONN HEADER SMD 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-14-VSG-SMT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height [z]	10.49 mm
Insulation Height [z]	0.413 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

BHR-14 Series

Part	Style	Contact Finish - Mating	Material Flammability Rating	Number of Positions Loaded	Termination	Features	Contact Finish - Post	Contact Shape	Contact Type	Number of Positions	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Voltage Rating	Contact Material	Number of Rows	Insulation Color	Shrouding	Current Rating (Amps)	Insulation Material	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Post
Adam Tech BHR-14-VSG-SMT	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Tin	Square	Male Pin	14	Header	Push-Pull	-40 °C	105 ░C	Surface Mount	Flash	250 VAC	Brass	2	Black	Shrouded - 4 Wall	3 A	Thermoplastic	0.1 in	2.54 mm	2.54 mm	0.1 in	10.49 mm	0.413 in
Adam Tech BHR-14-HUA	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Gold	Square	Male Pin	14	Header	Push-Pull	-40 °C	105 ░C	Through Hole Right Angle	Flash	250 VAC	Brass	2	Black	Shrouded - 4 Wall		Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	2.54 mm	0.1 in	9.05 mm	0.356 in	Flash	0.134 in	3.4 mm
Adam Tech BHR-14-HUA-ML	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Gold	Square	Male Pin	14	Header	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	Through Hole Right Angle	Flash	350 VAC	Brass	2	Black	Shrouded - 4 Wall	3 A	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	2.54 mm	0.1 in			Flash	0.126 in		3.2 mm	9 mm	0.354 in
Adam Tech BHR-14-VUA-ML	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Gold	Square	Male Pin	14	Header	Push-Pull	-40 °C	105 ░C	Through Hole	Flash	250 VAC	Brass	2	Black	Shrouded - 4 Wall	3 A	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	2.54 mm	0.1 in			Flash			3.3 mm	9.1 mm	0.358 in	0.13 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.36
		10	$ 1.04
		80	$ 0.82
		440	$ 0.68
		945	$ 0.62
		4900	$ 0.53
		10000	$ 0.49
