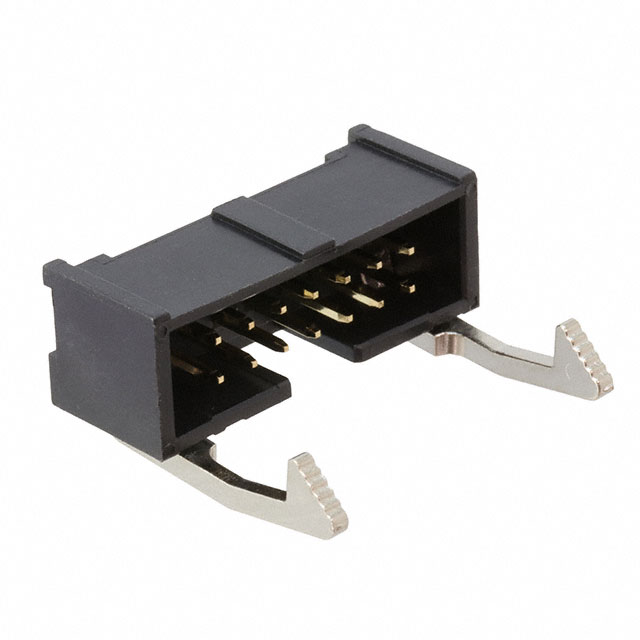

BHR-14-VUA-ML

Active

Adam Tech

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BHR-14-VUA-ML

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.358 in
Insulation Height	9.1 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

BHR-14 Series

Part	Style	Contact Finish - Mating	Material Flammability Rating	Number of Positions Loaded	Termination	Features	Contact Finish - Post	Contact Shape	Contact Type	Number of Positions	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Voltage Rating	Contact Material	Number of Rows	Insulation Color	Shrouding	Current Rating (Amps)	Insulation Material	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Post
Adam Tech BHR-14-VSG-SMT	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Tin	Square	Male Pin	14	Header	Push-Pull	-40 °C	105 ░C	Surface Mount	Flash	250 VAC	Brass	2	Black	Shrouded - 4 Wall	3 A	Thermoplastic	0.1 in	2.54 mm	2.54 mm	0.1 in	10.49 mm	0.413 in
Adam Tech BHR-14-HUA	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Gold	Square	Male Pin	14	Header	Push-Pull	-40 °C	105 ░C	Through Hole Right Angle	Flash	250 VAC	Brass	2	Black	Shrouded - 4 Wall		Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	2.54 mm	0.1 in	9.05 mm	0.356 in	Flash	0.134 in	3.4 mm
Adam Tech BHR-14-HUA-ML	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Gold	Square	Male Pin	14	Header	Latch Lock/Eject Hooks Long	-40 °C	105 ░C	Through Hole Right Angle	Flash	350 VAC	Brass	2	Black	Shrouded - 4 Wall	3 A	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	2.54 mm	0.1 in			Flash	0.126 in		3.2 mm	9 mm	0.354 in
Adam Tech BHR-14-VUA-ML	Board to Board Cable	Gold	UL94 V-0	All	Solder	Keying Slot	Gold	Square	Male Pin	14	Header	Push-Pull	-40 °C	105 ░C	Through Hole	Flash	250 VAC	Brass	2	Black	Shrouded - 4 Wall	3 A	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	2.54 mm	0.1 in			Flash			3.3 mm	9.1 mm	0.358 in	0.13 in
