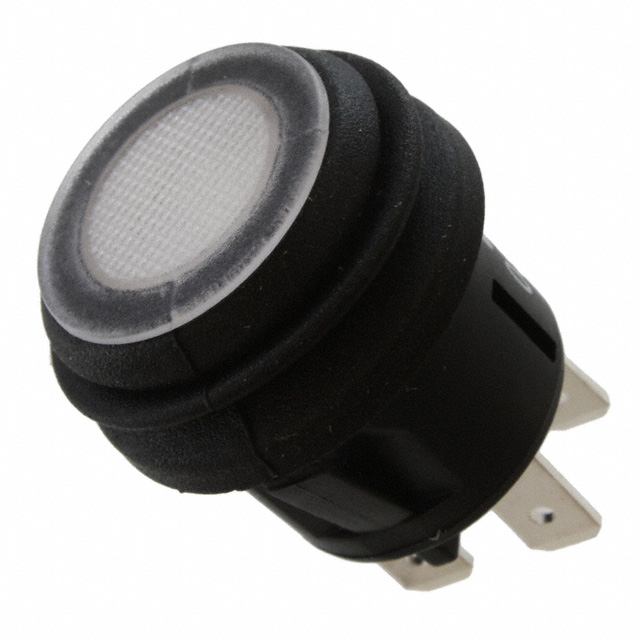

Specification	GPB527B2L02BW

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	DPST
Color	White
Color - Actuator/Cap	White
Current Rating	10 A
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	20.2 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.187")	0.187 in
Switch Function	Off-On
Termination Style	Quick Connect
Type	Standard, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

GPB527B Series

Part	Type	Voltage Rating - DC	Operating Temperature (Max)	Operating Temperature (Min)	Color - Actuator/Cap	Quick Connect Size (0.187")	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Actuator Marking	Voltage Rating - AC	Circuit	Current Rating	Mounting Type	Actuator Type	Switch Function	Ingress Protection IP Rating	Ingress Protection Description	Color	Illumination Type	Illumination Voltage (Nominal)
CW Industries GPB527B202BU	Standard	28 V	85 °C	-25 °C	Blue	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Water Resistant
CW Industries GPB527B2L02BR1	Illuminated Standard	28 V	65 °C	-25 °C	Red	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Oil and Water Resistant	Red	LED	12 V
CW Industries GPB527B2L02BG1	Illuminated Standard	28 V	85 °C	-25 °C	Green	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Water Resistant	Green	LED	12 V
CW Industries GPB527B2L02BA1	Illuminated Standard	28 V	85 °C	-25 °C	Amber	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Water Resistant	Amber	LED	12 V
CW Industries GPB527B2L02BW	Illuminated Standard	28 V	85 °C	-25 °C	White	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Water Resistant	White	LED	12 V
CW Industries GPB527B202BW	Standard	28 V	85 °C	-25 °C	White	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Water Resistant
CW Industries GPB527B202BR	Standard	28 V	85 °C	-25 °C	Red	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Water Resistant
CW Industries GPB527B2L02BU1	Illuminated Standard	28 V	85 °C	-25 °C	Blue	0.187 in	Quick Connect	20.2 mm	Circular	No Marking	125 V	DPST	10 A	Panel Mount Snap-In	Button Round	Off-On	IP65	Dust Tight Water Resistant	Blue	LED	12 V
