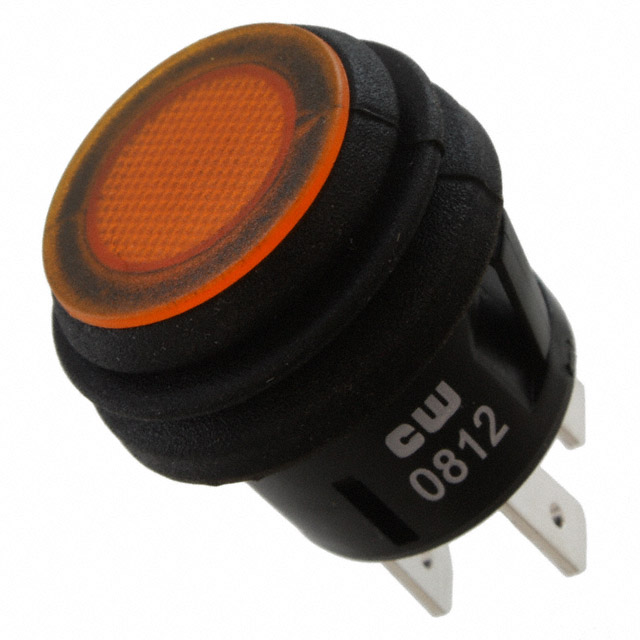

GPB527B2L02BA1

Active

CW Industries

SWITCH PUSHBUTTON DPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GPB527B2L02BA1

Active

CW Industries

SWITCH PUSHBUTTON DPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GPB527B2L02BA1

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Amber
Current Rating (Amps)	10 A
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

GPB527B Series

Part	Mounting Type	Voltage Rating - AC	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Type	Color - Actuator/Cap	Switch Function	Circuit	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Type	Illumination Voltage (Nominal)	Illumination Type, Color
CW Industries GPB527B202BU	Panel Mount Snap-In	125 V	Quick Connect - 0.187" (4.7mm)	28 V	10 A	20.2 mm	Button Round	Blue	Off-On	DPST	No Marking	-25 °C	85 °C	IP65 - Dust Tight Water Resistant	Standard
CW Industries GPB527B2L02BR1	Panel Mount Snap-In	125 V	Quick Connect - 0.187" (4.7mm)	28 V	10 A	20.2 mm	Button Round	Red	Off-On	DPST	No Marking	-25 °C	65 °C	IP65	Illuminated Standard	12 VDC	LED Red
CW Industries GPB527B2L02BA1	Panel Mount Snap-In	125 V	Quick Connect - 0.187" (4.7mm)	28 V	10 A	20.2 mm	Button Round	Amber	Off-On	DPST	No Marking	-25 °C	85 °C	IP65 - Dust Tight Water Resistant	Illuminated Standard	12 VDC	Amber LED
CW Industries GPB527B2L02BW	Panel Mount Snap-In	125 V	Quick Connect - 0.187" (4.7mm)	28 V	10 A	20.2 mm	Button Round	White	Off-On	DPST	No Marking	-25 °C	85 °C	IP65 - Dust Tight Water Resistant	Illuminated Standard	12 VDC	LED White
CW Industries GPB527B202BR	Panel Mount Snap-In	125 V	Quick Connect - 0.187" (4.7mm)	28 V	10 A	20.2 mm	Button Round	Red	Off-On	DPST	No Marking	-25 °C	85 °C	IP65 - Dust Tight Water Resistant	Standard
CW Industries GPB527B2L02BU1	Panel Mount Snap-In	125 V	Quick Connect - 0.187" (4.7mm)	28 V	10 A	20.2 mm	Button Round	Blue	Off-On	DPST	No Marking	-25 °C	85 °C	IP65 - Dust Tight Water Resistant	Illuminated Standard	12 VDC	Blue LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

GPB527B Series

Pushbutton Switch DPST Standard, Illuminated Panel Mount, Snap-In
