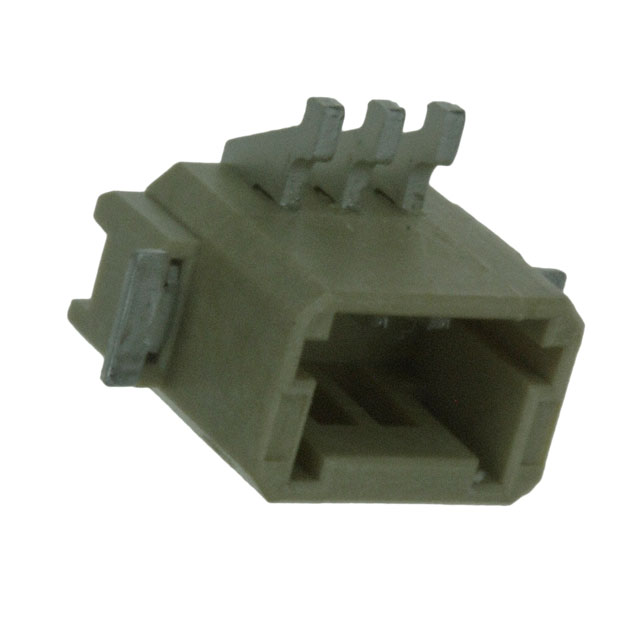

2106091-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER SMD T/H 3POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2106091-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER SMD T/H 3POS 1.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2106091-2 |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Through Board |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.32 | |
| 10 | $ 1.23 | |||
| 100 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 1.32 | ||
| 10 | $ 1.23 | |||
| 100 | $ 1.06 | |||
| Tape & Reel (TR) | 450 | $ 1.03 | ||
| 900 | $ 0.93 | |||
| 1350 | $ 0.84 | |||
| 3150 | $ 0.78 | |||
| 11250 | $ 0.71 | |||
Description
General part information
Inverted Thru-Board Interconnects Series
Connector Header Surface Mount, Through Board 3 position 0.059" (1.50mm)
